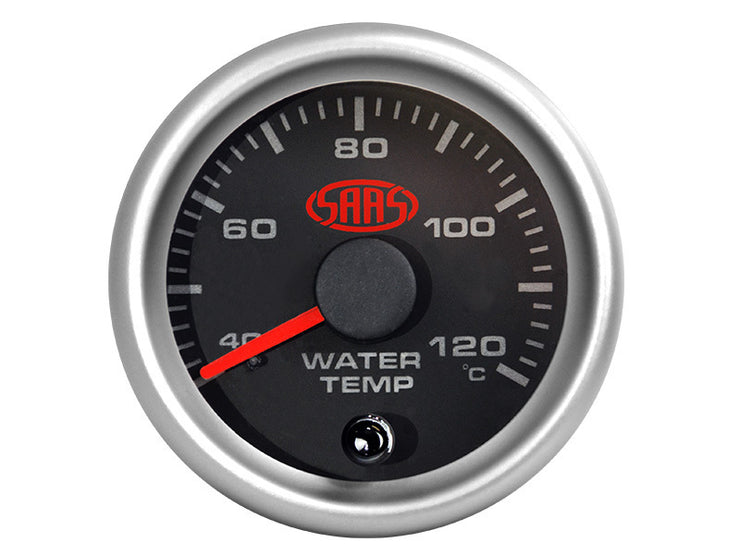

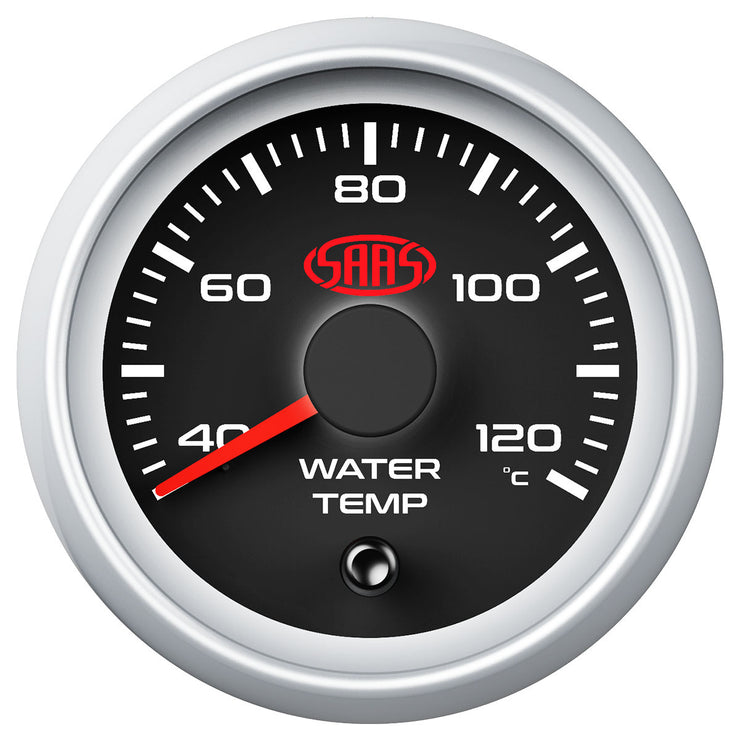

SAAS Water Temperature Gauge
SGWT52BS2 Water Temp Gauge 40°-120° 52mm Black Muscle Series 2
Keep an eye on your vehicle's water temperature and be on the alert for possible overheating or other potential engine issues.
FEATURES:
- 40°-120° Temperature Range
- LED lighting with 4 colour options
- Micro switch for backlight changes
- Replacement spares available (see below)
WHAT'S INCLUDED :
- Water Temp Gauge
- Water Temperature Sender
- SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
- Wiring Loom
- Mounting Bracket and fittings
FITMENT NOTES:
The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
SPARES/SPECS
SERIES | Muscle Series II |
DIAMETER | 52mm / 2" |
RANGE | 40°-120° |
LIGHTING | LED Multi-select 4 Colour |
TYPE | Electronic |
BRACKET MOUNTING | SG31005 |
SENDER WATER TEMP | SG31001 |
SENDER THREAD | 1/8" NPT |
SENDER ADAPTORS | Brass Adaptors |
WIRING LOOM | SG3120 |
DOWNLOAD | Fitting Instructions |
