LED Autolamps

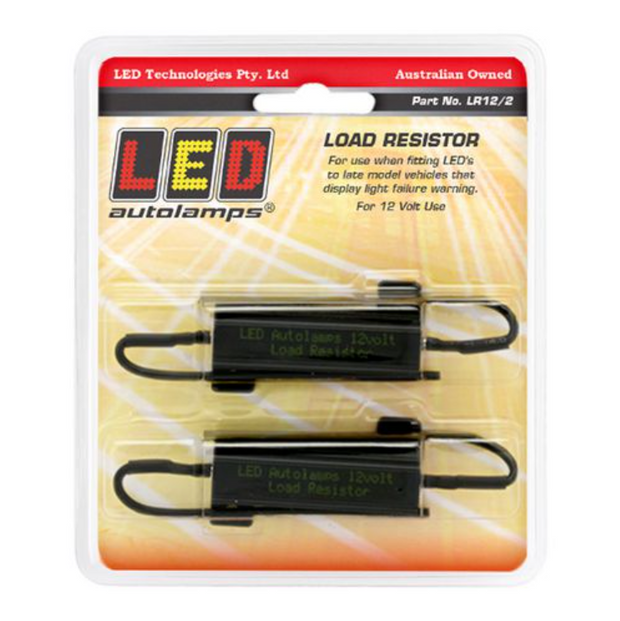

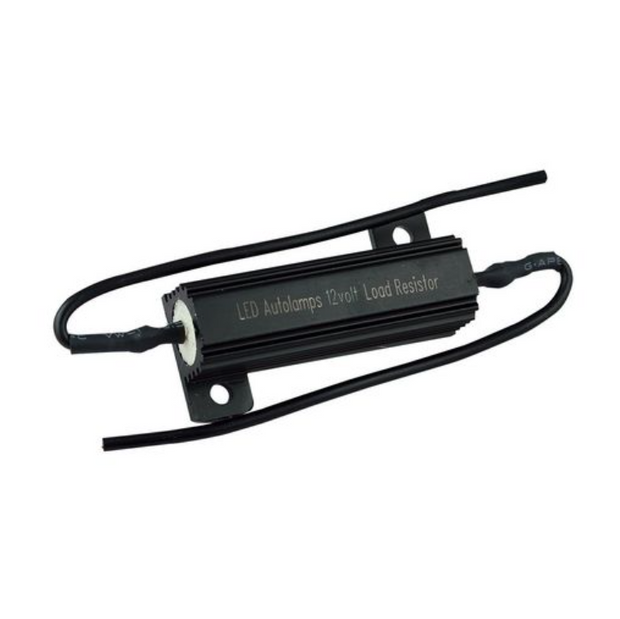

LED Autolamps LR12/2 12V Load Resistor, 50 Watt 6 Ohms (Twin blister)

Features / Specifications

• Designed for late model vehicles that display light failure warning.
• Draws same current as a 21 watt globe
• IP67 Shock/dust/water proof
• 5 Year Warranty


Fitting Instructions
Must be mounted on metal surface, the resistor can reach temperatures of up to 170 Celsius. You may require up to 1 resistor per function on each side. The resistor should always be wired between the input wires of the lamp, Not the chassis of the vehicle or trailer! If fitted to the chassis, a bad earth connection is possible and can result in problems with the lighting system of the vehicle.

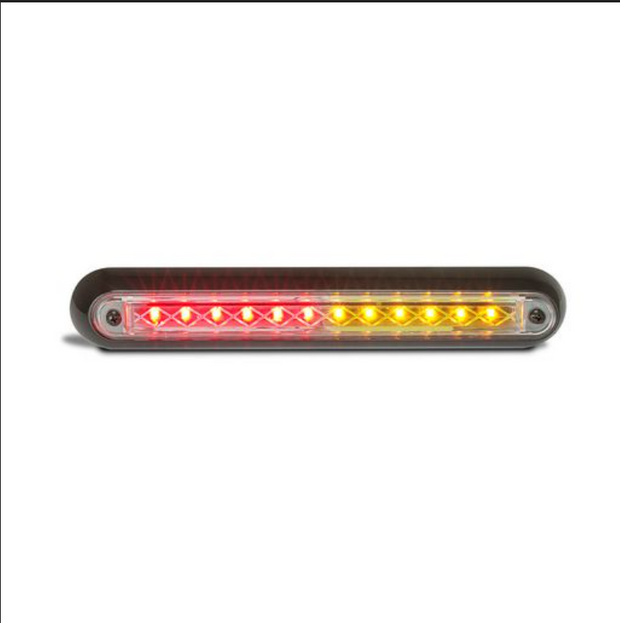

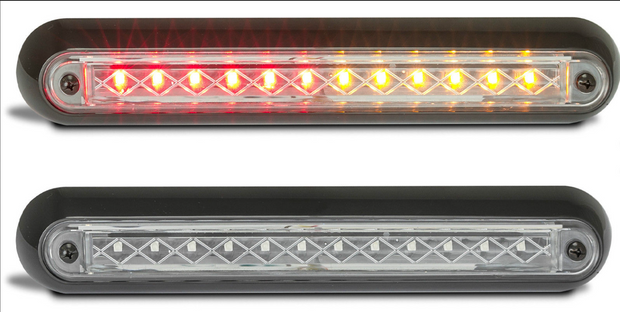

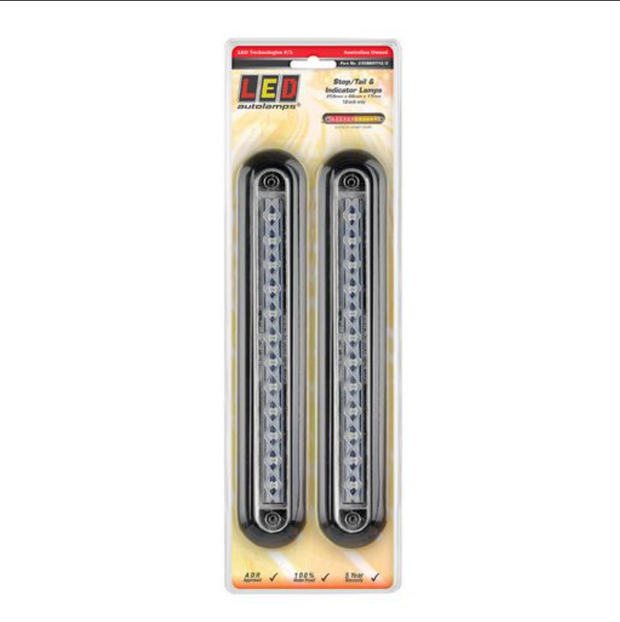

STOP TAIL INDICATOR LED 12V TWIN PACK LED AUTOLAMPS 235BBSTI12/2

Features / Specifications

• Slimline Design
• ADR approved
• IP67 100% Waterproof
• 12 Volt
• 5 Year Warranty
• 259mm x 46mm x 17mm

Product Code: 235BBSTI12/2

• Recessed Fitting
• Surface Mount Brackets Available
• Low profile slimline design
• ECE Approved
• IP67 100% Waterproof

• 12 Volt Only
• 237mm x 25mm x 3mm
• 5 Year Warranty

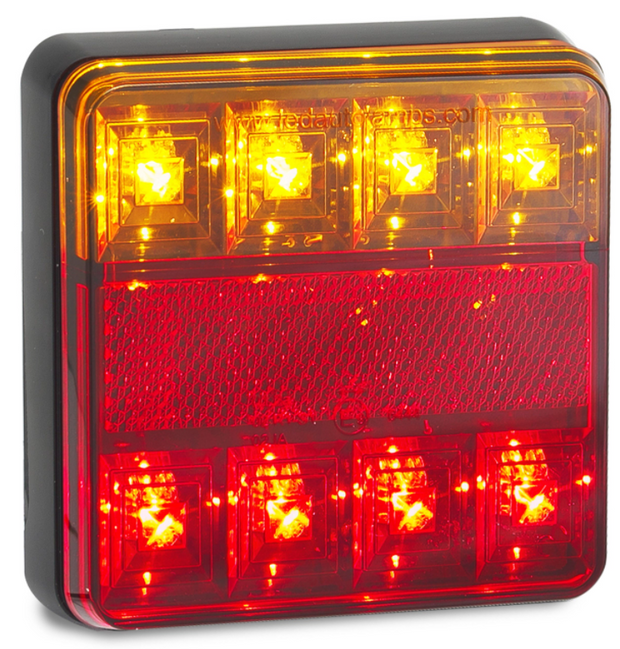

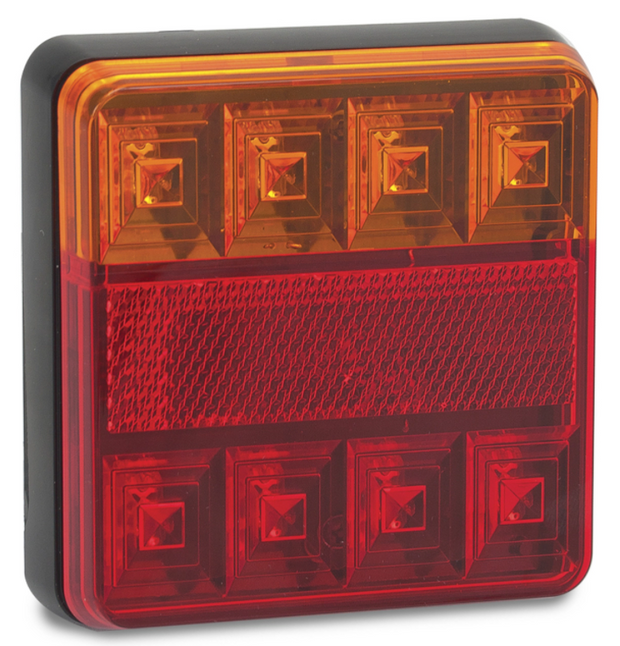

LED Autolamps 101BAR2 Stop/Tail/Indicator & Reflector Combination Lamp (Twin Blister)

Features / Specifications

• Budget Trailer Lamp
• Low Profile
• ADR/ECE approved
• IP67 100% Water proof
• 12 Volt
• 5 Year Warranty
• 100mm x 100mm x 22mm

Fitting Instructions

Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.

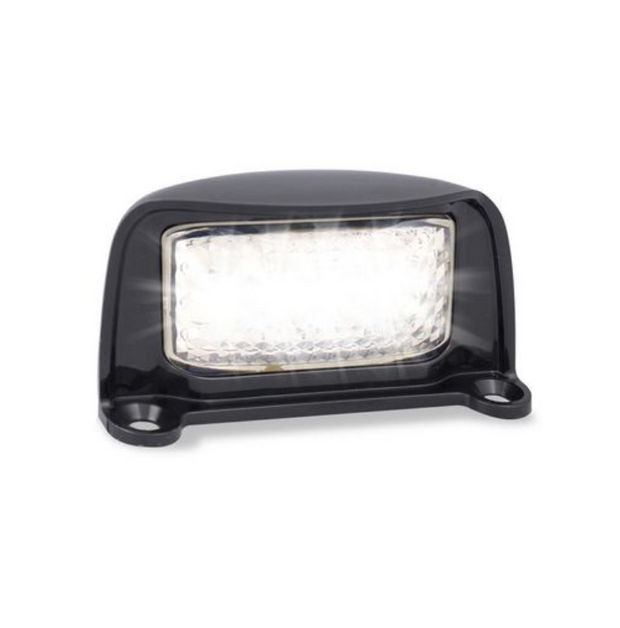

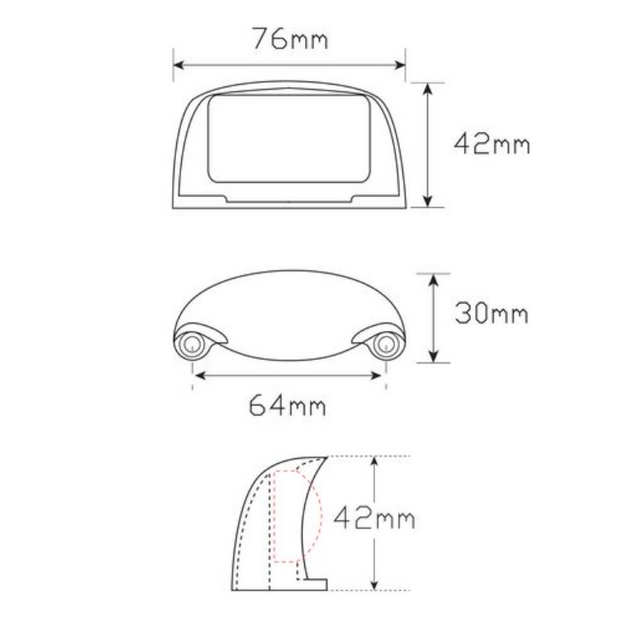

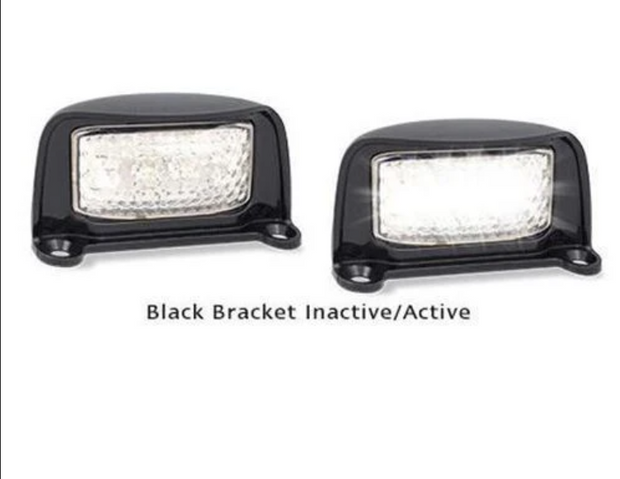

LED Autolamps 35BLM Licence Plate Lamp

Features / Specifications

• Original Design
• 40cm, or 1m or 6m cable with plugin option
• ADR approved
• IP67 100% Water proof
• Voltage Range 12-24 Volt
• 76mm x 42mm x 30mm

Fitting Instructions

Fit onto flat surface, 25mm from top center, long edge of licence plate with lens facing towards the ground. Please refer to ADR 13/00 for mounting instructions.

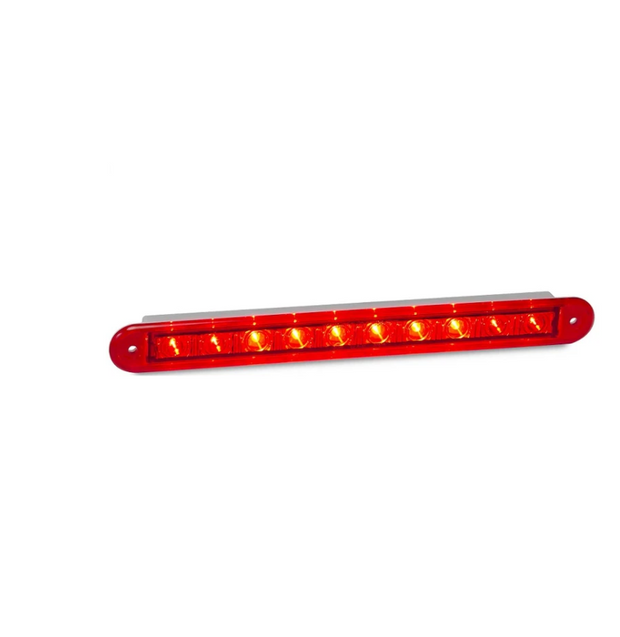

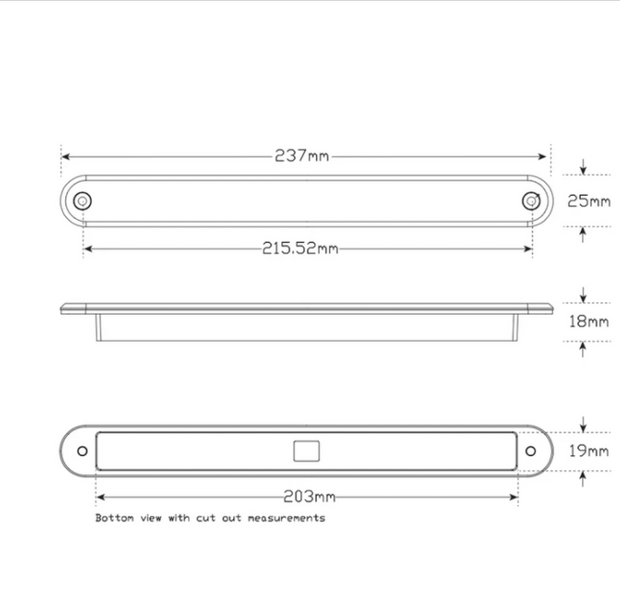

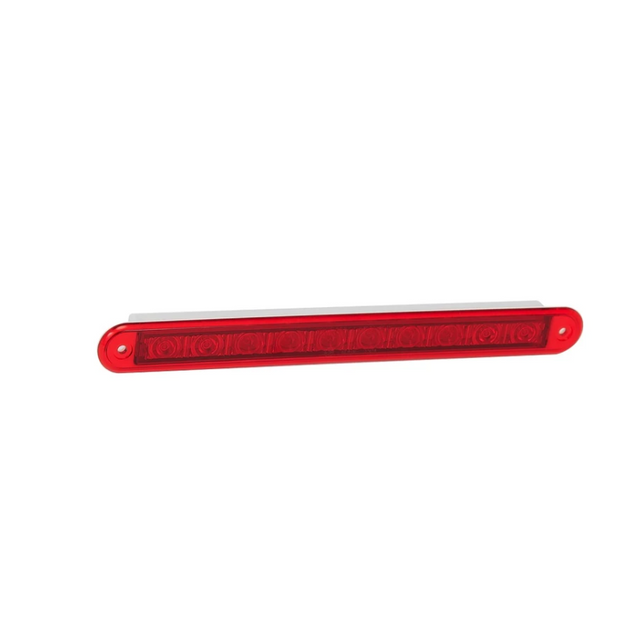

• LED Autolamps Rear Stop/Tail Lamp

• Recessed mount
• P/N: 235R12
• Red lens, red LED's
• ADR Approved
• 100% waterproof
• 12 Volt Only
• 237 x 25 x 18mm
• Cut out: 203 x 19mm

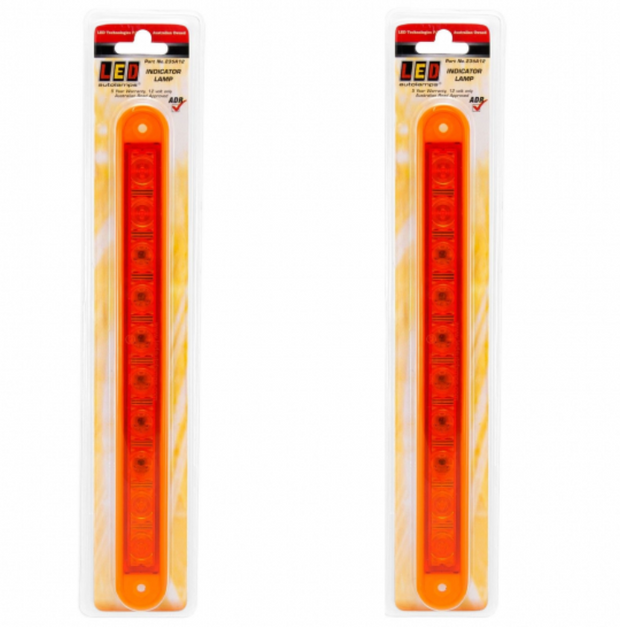

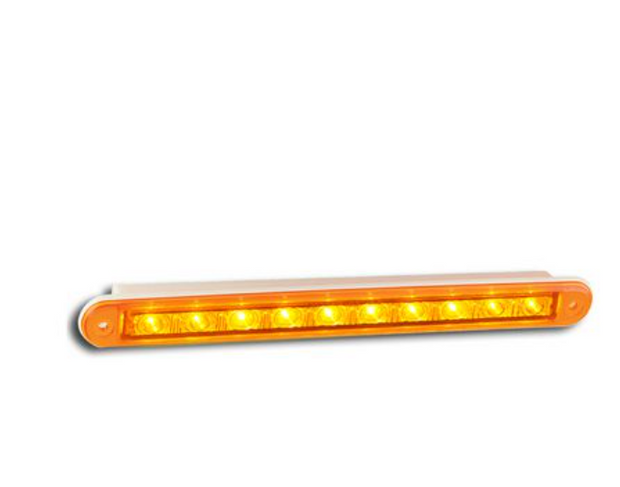

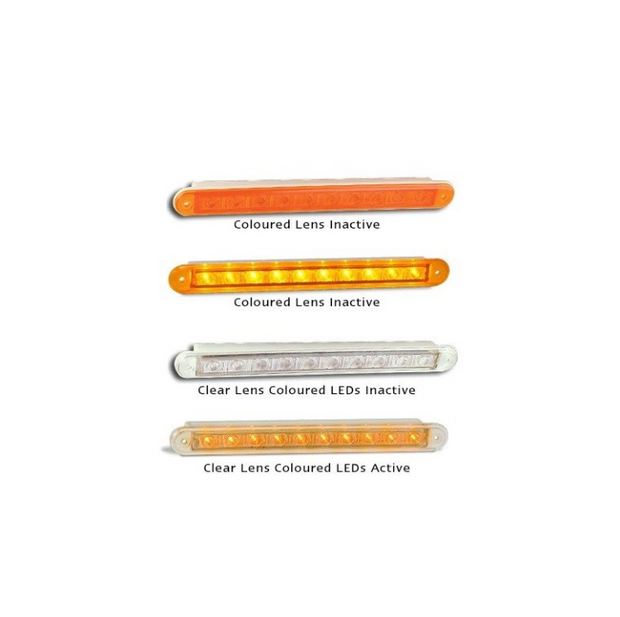

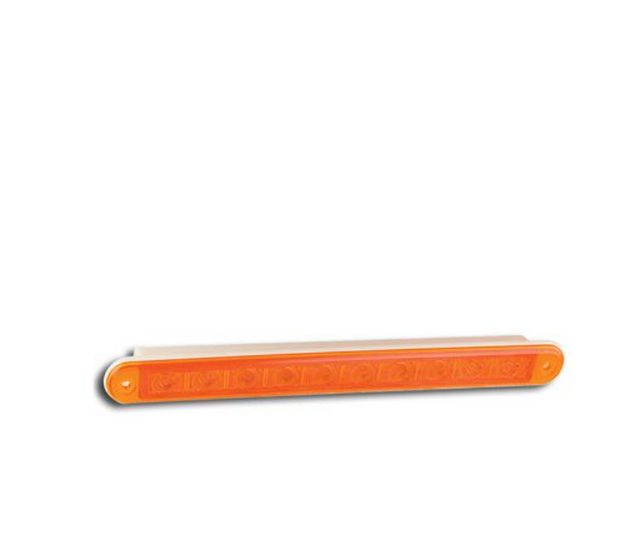

LED Autolamps 235A12 Single Rear Indicator Recessed Mount Lamp - 12V, Amber (Blister)

Features / Specifications

• Recessed mount
• Low profile slimline design
• ADR/ECE approved
• IP67 100% Waterproof
• Voltage Range 12 Volt
• 237mm x 25mm x 3mm
• 5 Year Warranty

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws. Please refer to ADR 13/00 for mounting instructions.

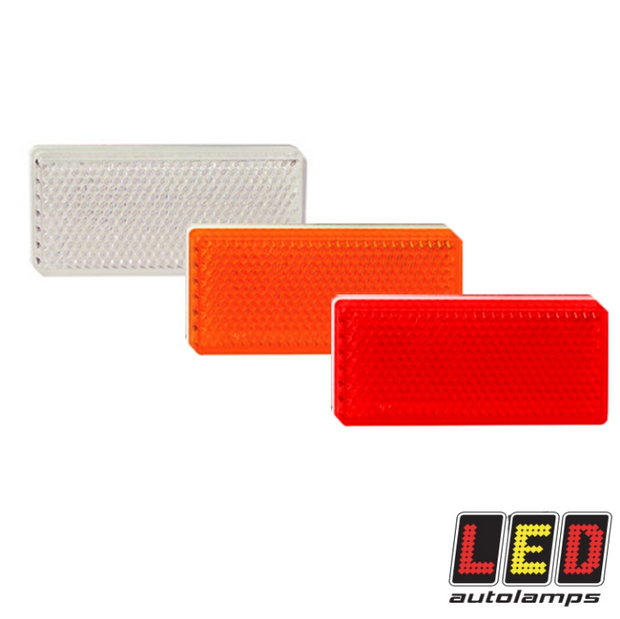

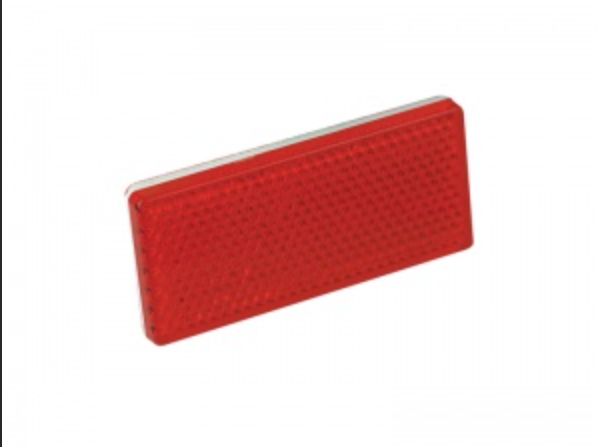

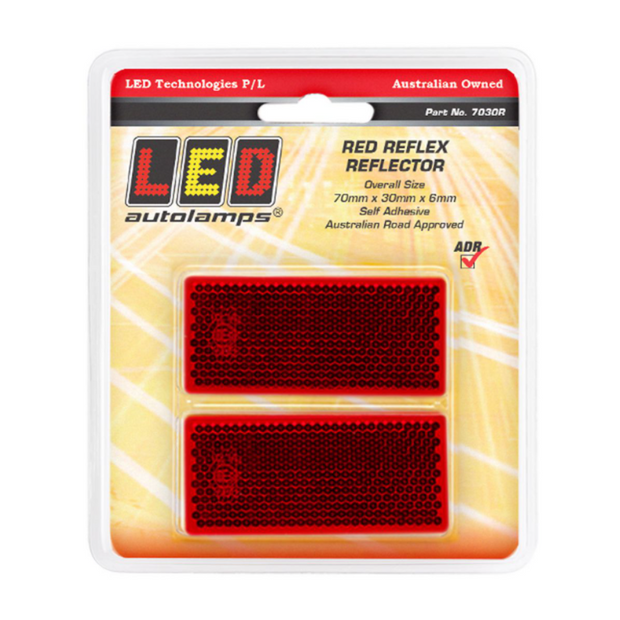

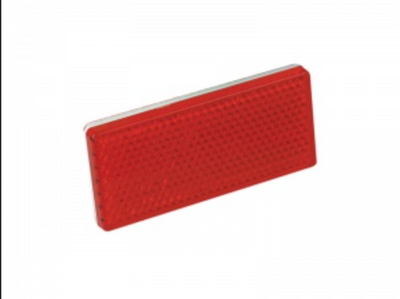

2 X PACKS LED AUTOLAMPS REFLEX RED REFLECTOR STICK ON DRIVING LIGHT TRUCK TRAILER CARAVAN P/N 7030R

Remove tape backing and place onto flat surface, apply firm hand pressure to ensure adhesion.

PRODUCT DESCRIPTION

LED autolamps Red Reflex Reflector.

Stick-On Reflector

ADR Approved. ADR Compliant for Both Horizontal or Vertical Mount

70mm x 30mm x 6mm

FEATURES

Premium Quality Products

Low profile design

High Quality 3m Tape

5 Year Warranty

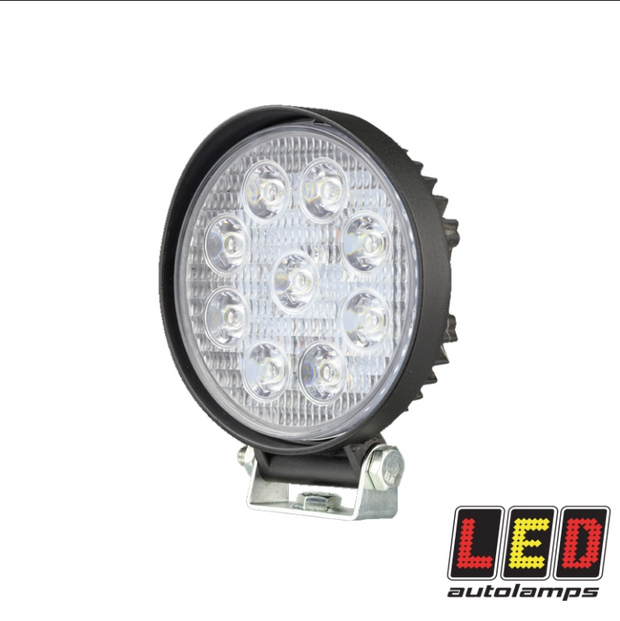

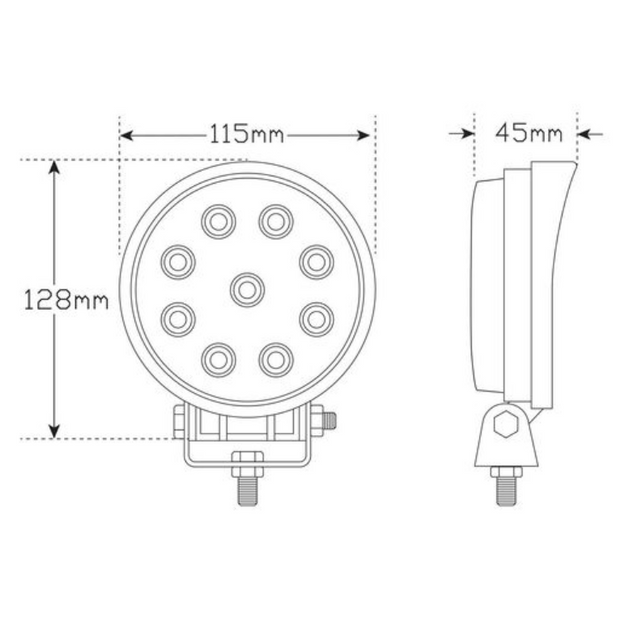

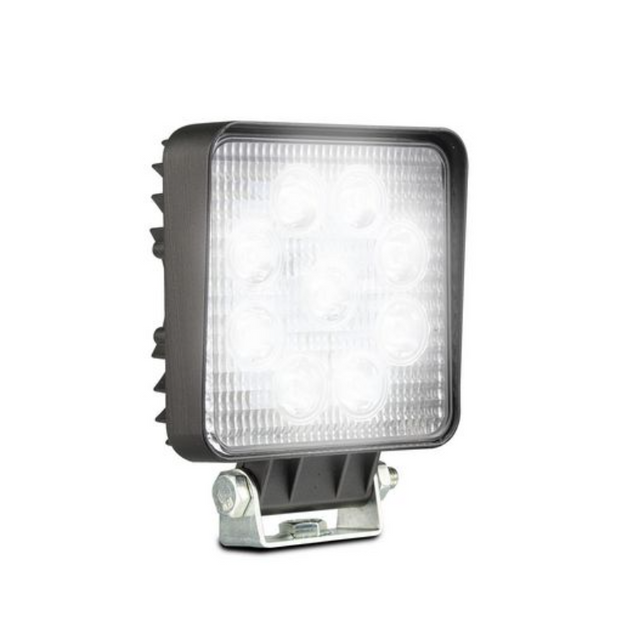

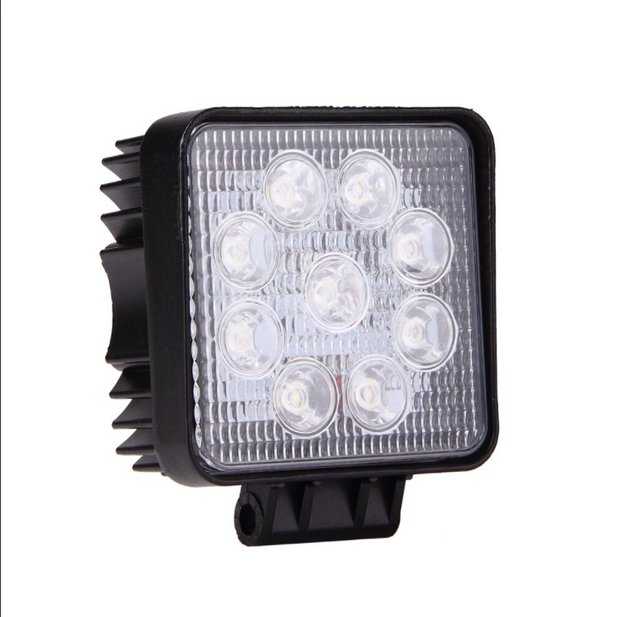

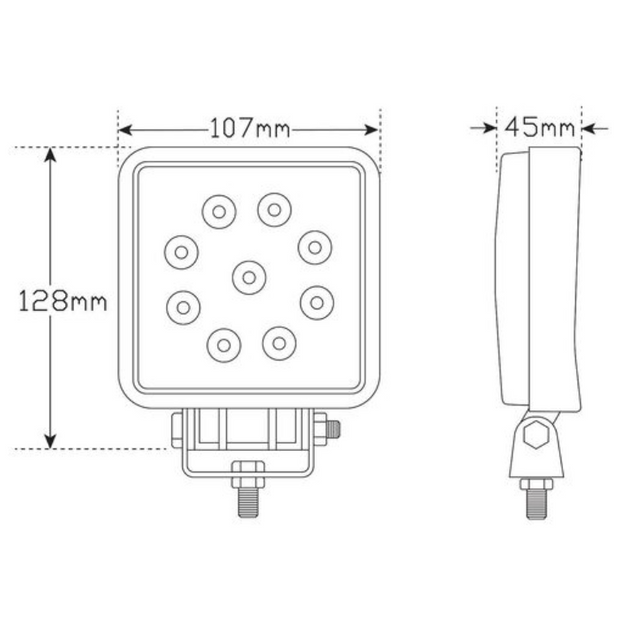

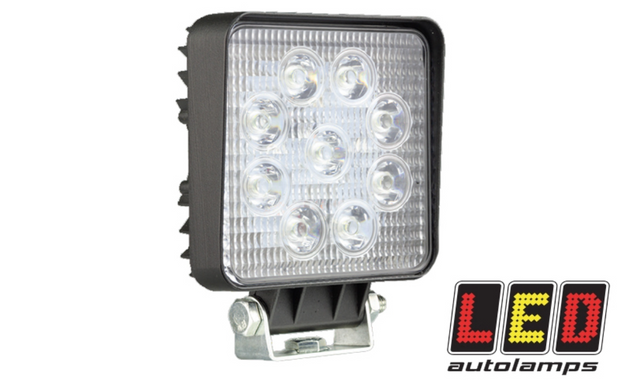

• Heavy Duty Flood Lamp
• High Brightness 3 Watt LEDs
• Color Temperature 6000K
• Heavy Duty Aluminium Base
• IP67 Rated

• Voltage Range 9-32 Volt
• 2 Year Warranty
• 107mm x 128mm x 45mm

• Size: 115x128x45mm
• 27 Watt
• 1080 effective lumens
• Black powder coated

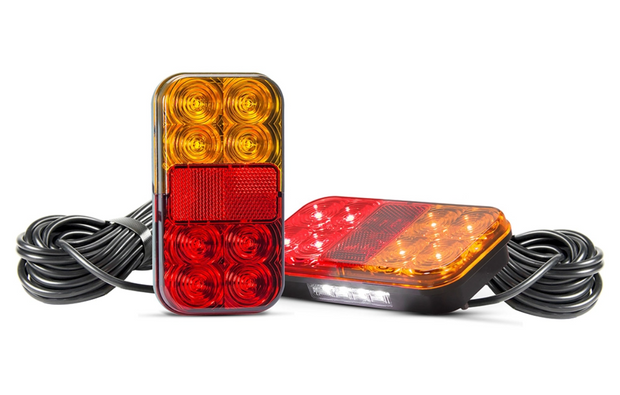

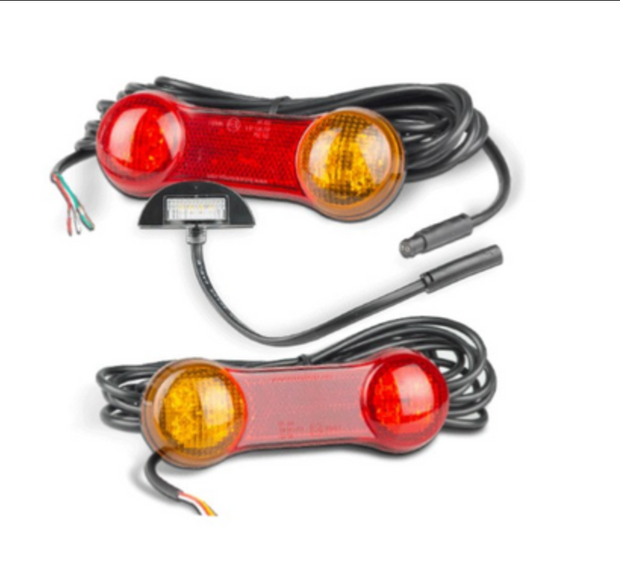

The DB series lamps are perfect for the small trailer market with stop/tail/indicator and inbuilt reflector as standard. Simplicity in fitting is the key feature, all that is required is to drill a 13mm hole for the serrated plug and wire outlet and peel of the supplied 3M tape from the rear of the lamp then secure in place. The 3M tape holds the lamp in position and will not move or dislodge and with 3M being renowned for its high adhesive strength and durability you can feel assured the product is fit for purpose.

Extreme operational environments test the integrity of a vehicle or trailers lighting, have no doubt, these lamps will keep you moving with no stress. The DB series has been vibration tested and come built-in with solid-state circuit technology meaning no moving parts, sealed circuitry, with high impact acrylic plastics as well as super-bright LEDs that use enhanced lens optics. One of LEDs smallest rear combination lamp, and measuring only 150mm x 50mm, they are also comprehensively tested to extreme IP67 standards for dust and water ingress exceeding all ADR road approvals. This kit includes two lamps prewired with 5 meters of cable as well as a plug-in license plate lamp which is perfect for trailers that have a removable tailgate avoiding accidental damage to the lamps wiring.

LED Autolamps is committed to providing quality products at competitive prices, all centered on excellence in customer satisfaction. Auto Electricians and Manufacturers demand nothing less than the best and since 2002 LED Autolamps have delivered. Covering all vehicle, trailer, caravan, 4x4, emergency, mining and marine applications, they devote all their efforts into smarter manufacturing processes with a focus on conformity in Production to ensure product consistency, new and innovative designs, as well as product design and development. Dedication and quality in a product you expect so you can be confident these lamps will go the distance.

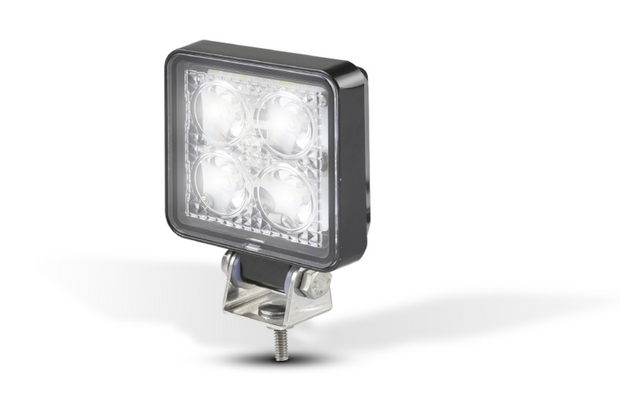

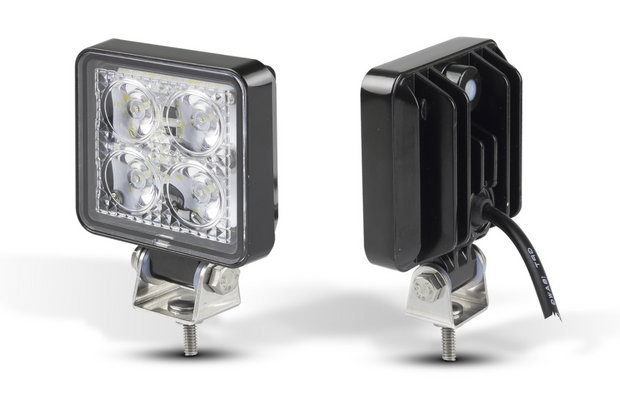

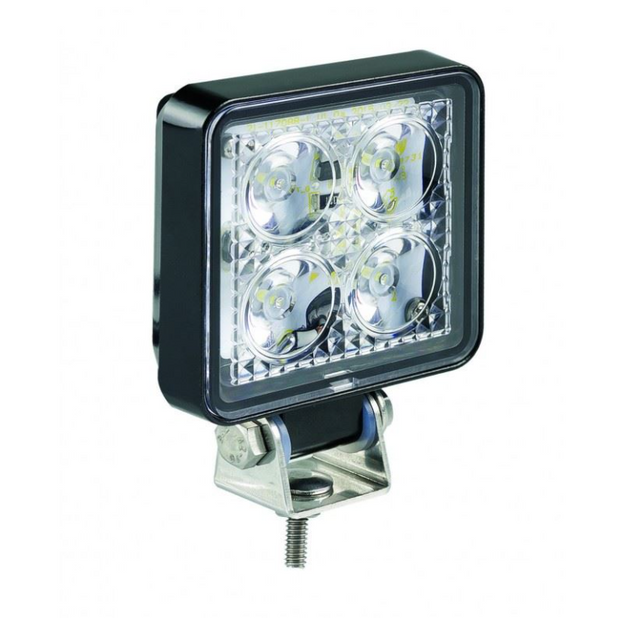

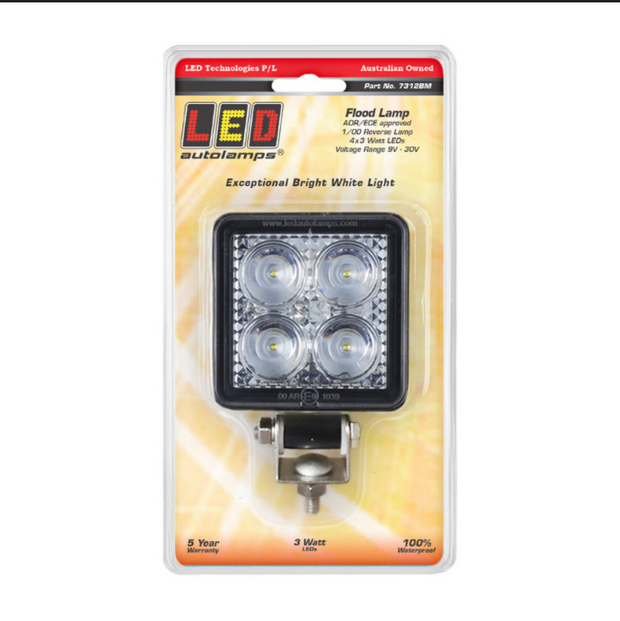

• LED Autolamps 7312BM Flood Lamp
• ECE/ADR Approved for 1/00 Reverse
• High light output
• Flood Beam
• High brightness 4x3 watt LEDs
• IP67 100% Waterproof
• Voltage Range 9-30 Volt
• 73mm x 73mm x 31mm

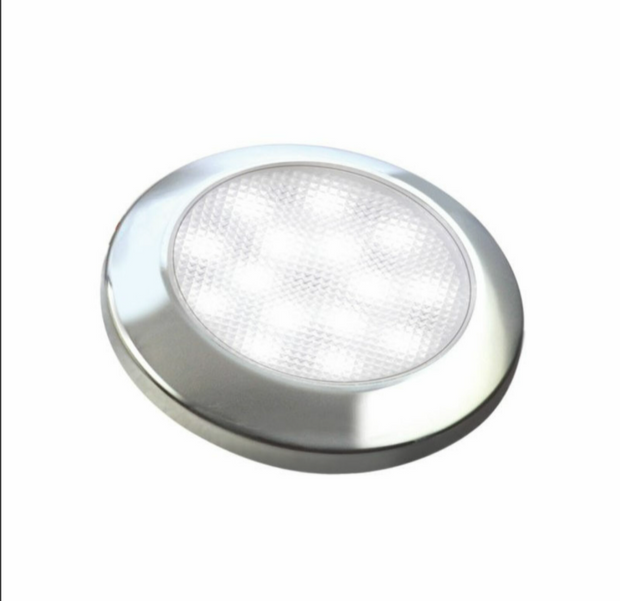

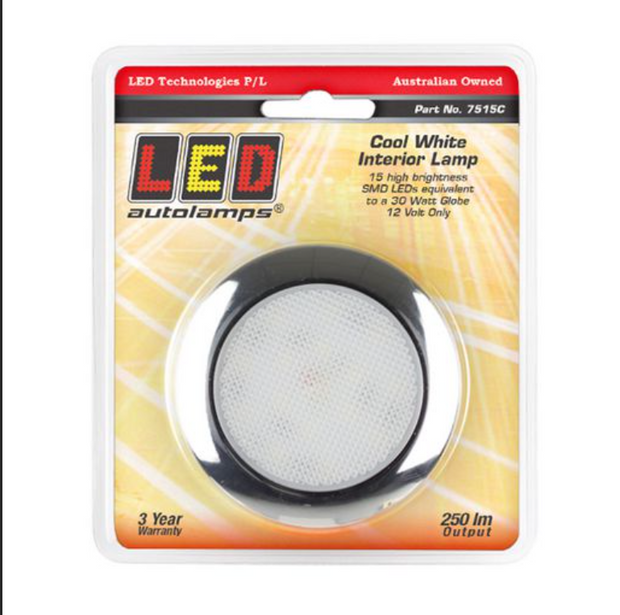

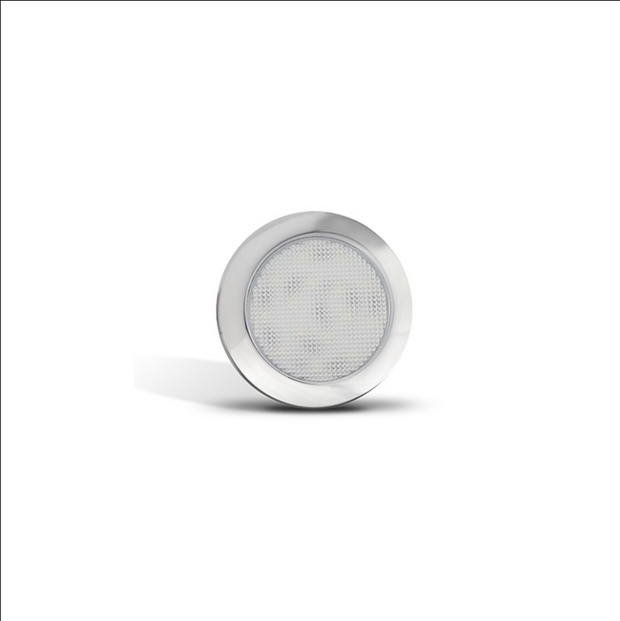

LED Autolamps 7515C Interior Lamp (Single Blister)

Features / Specifications

• 15 High Brightness LEDs
• Low profile Only 9mm
• 250 Effective Lumen
• Cool White 6500 Kelvin
• Warm White 3000 Kelvin
• 12 Volt Only
• 3 Year Warranty

Fitting Instructions

Remove bezel and surface mount using three screw points, run wires through hole in mounting surface and refit bezel by clicking into place.

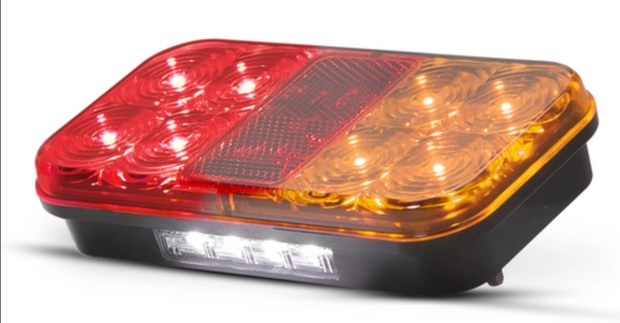

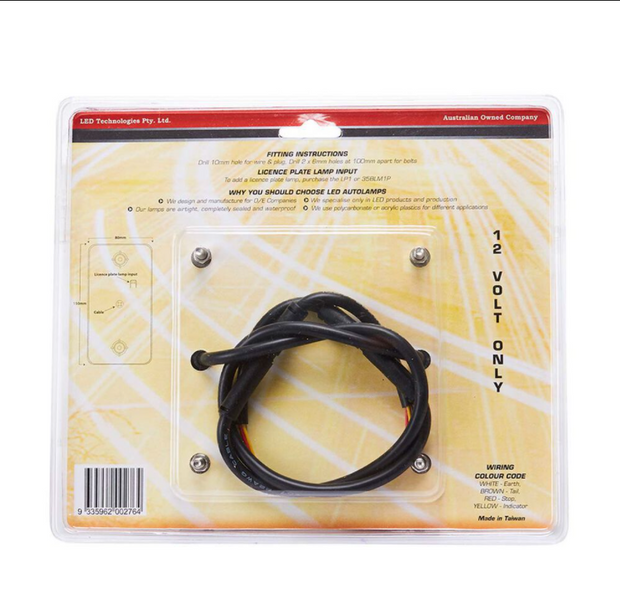

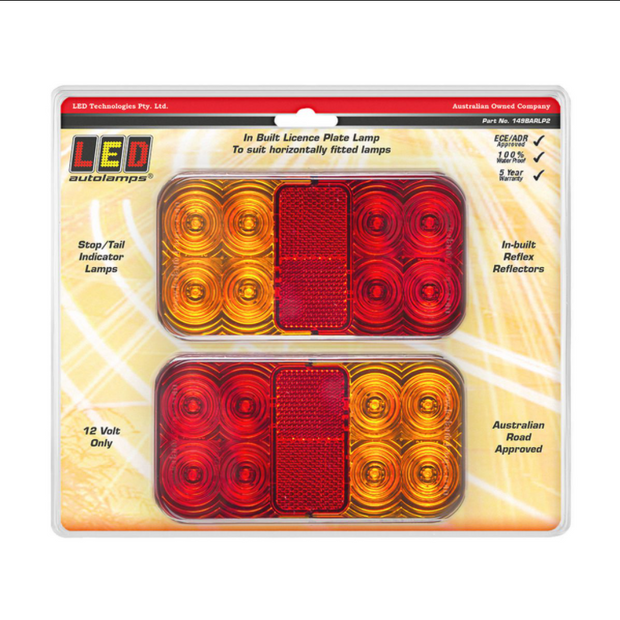

SPECIFICATIONS

Part No 149BARLP2
Stop / Tail / Indicator Lamps with Reflex Reflectors & Horizontally Mounted Lices Plate Lamp
IP67 100% Water proof
12 Volt with Horizontal Mount License Lamp
Twin Blister Left/Right Side

Overall Size
150mm x 80mm x 29mm
12 Volt Only
Plug in compatible cable kits and individual cables are available separately.
Fitting Instructions
Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
Wire Color Code
Brown - Tail / License
Red - Stop
Yellow - Indicator
White - Earth

Being LED lights, they have much lower power consumption and a longer life than traditional non-leds. Available in a sealed, airtight and waterproof packaging for durability.

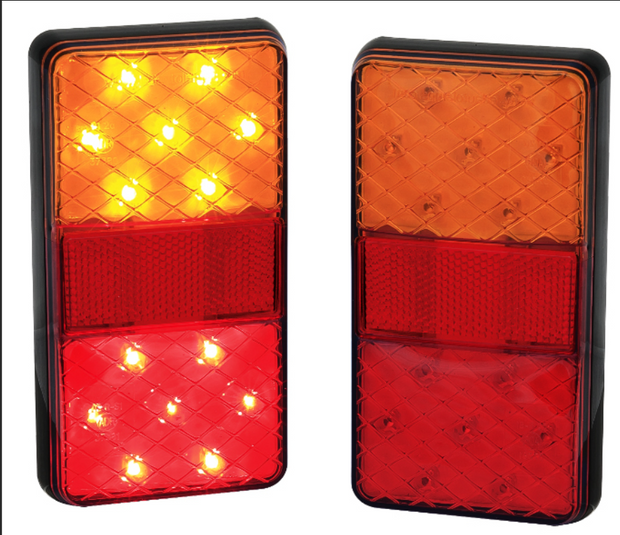

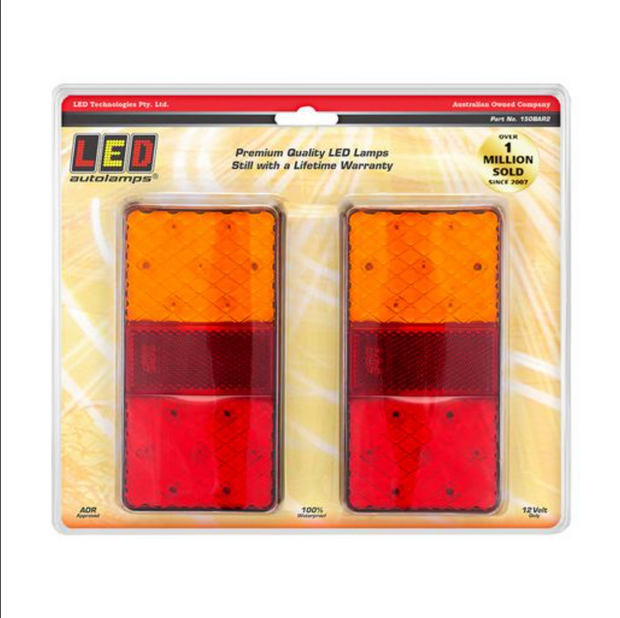

LED Autolamps 150BAR2 Stop/Tail/Indicator & Reflector Combination Lamp (Twin Blister)

Features / Specifications

• Premium Trailer Lamp
• Diamond Pattern Lens
• Low Profile
• ADR approved
• IP67 100% Water proof
• Voltage Range 12V or 12-24V
• Lifetime Warranty
• 150mm x 80mm x 24mm

Fitting Instructions

Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface.

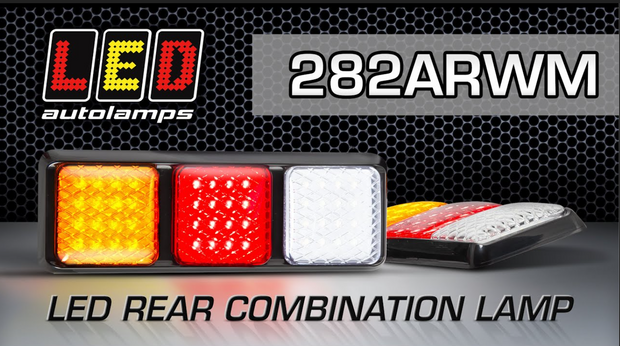

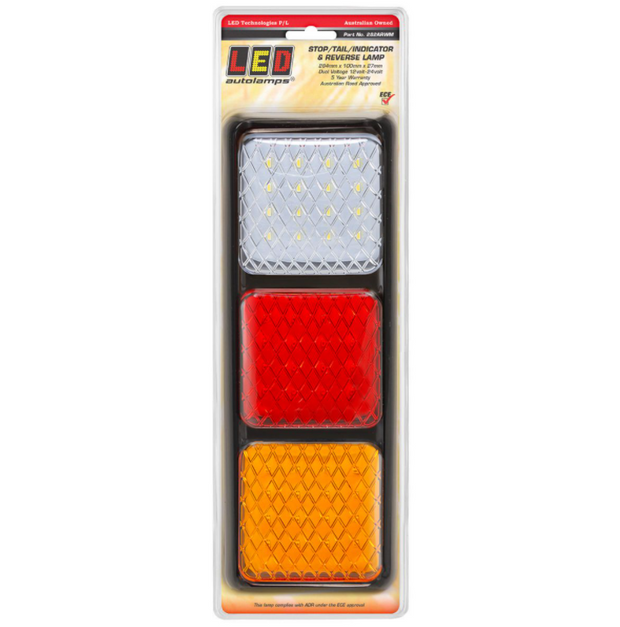

LED Autolamps 282ARWM Stop/Tail/Indicator/Reverse Combination Lamp (Blister)

Features / Specifications

• Modern Design Square Combination
• ADR/ECE approved
• IP67 100% Water proof
• 12-24 Volt
• 5 Year Warranty
• 284mm x 100mm x 37mm

Fitting Instructions

Horizontally surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface.

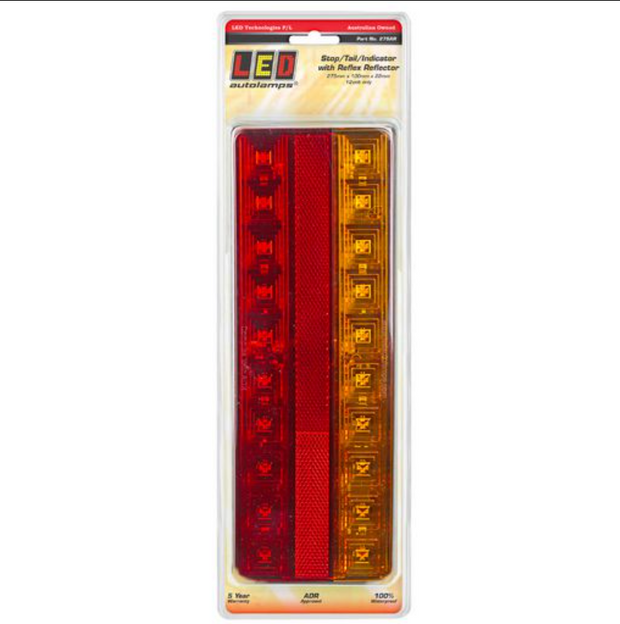

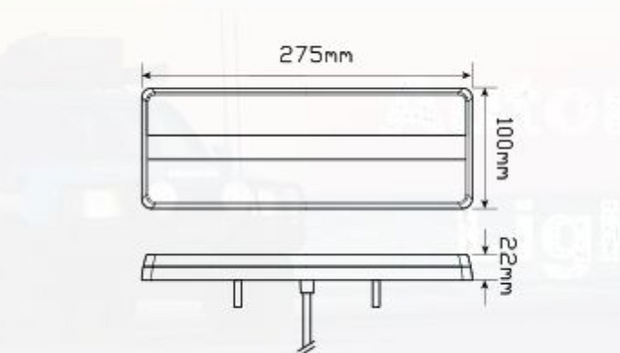

LED Autolamps 275AR Stop/Tail/Indicator/Reflector Combination Lamp (Single Blister)

Features / Specifications

• Brand New Design with Square Lens Pattern
• 3M Tape Fitting option
• ADR approved
• IP67 100% Water proof
• 12 Volt or 12-24 Volt
• 5 Year Warranty
• 275mm x 100mm x 22mm

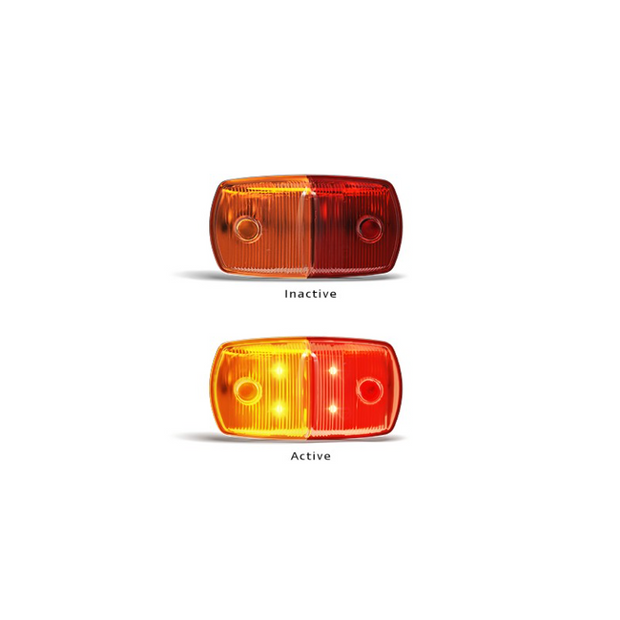

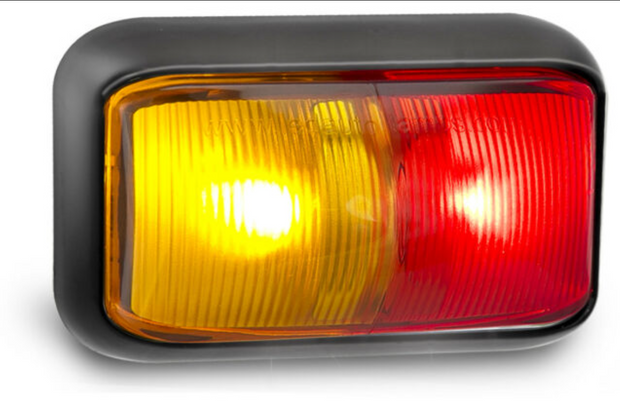

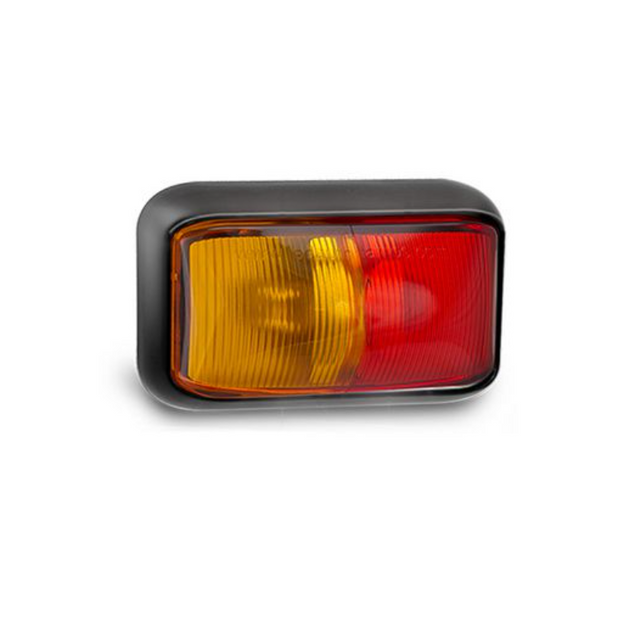

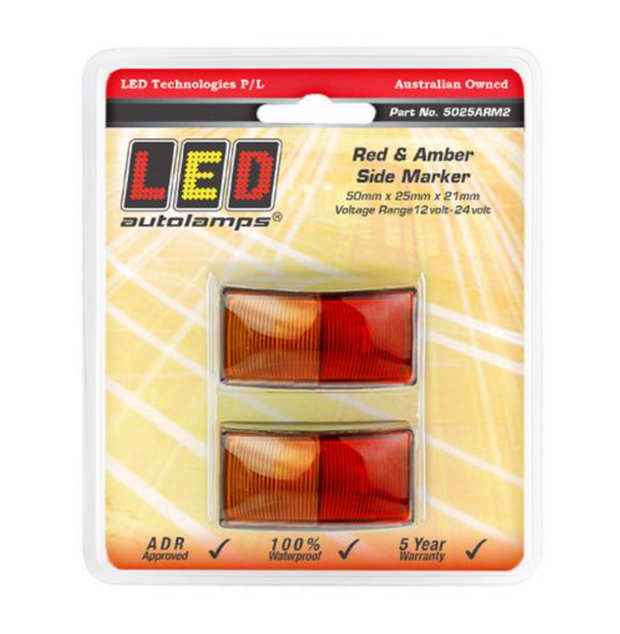

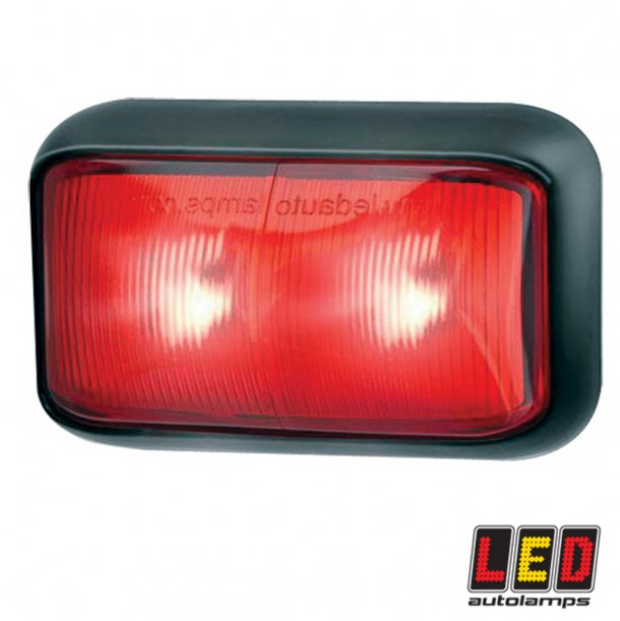

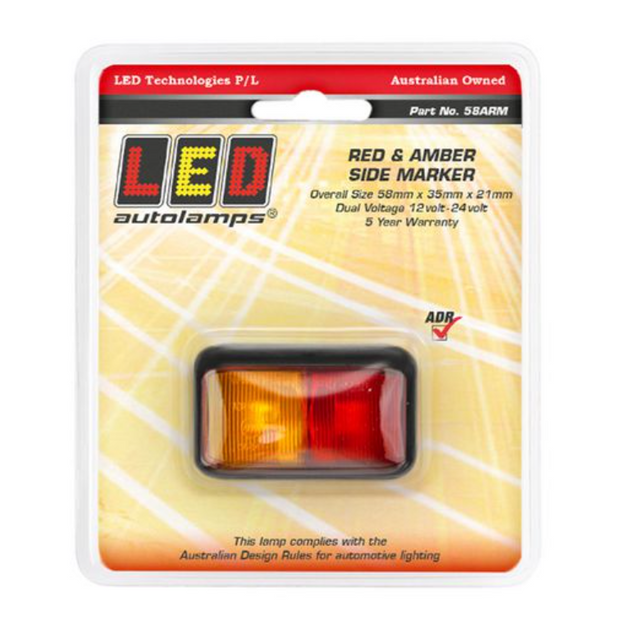

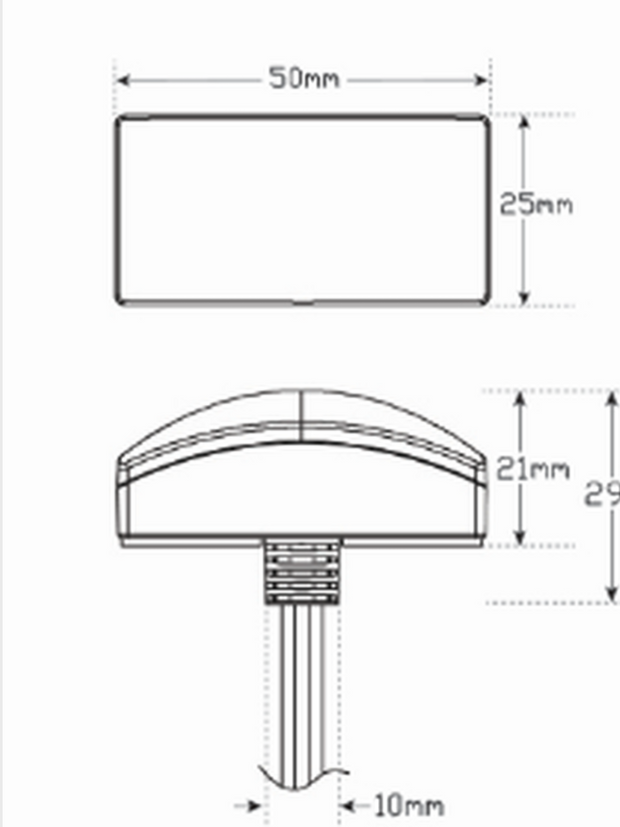

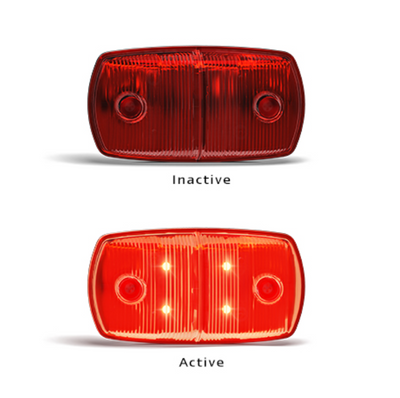

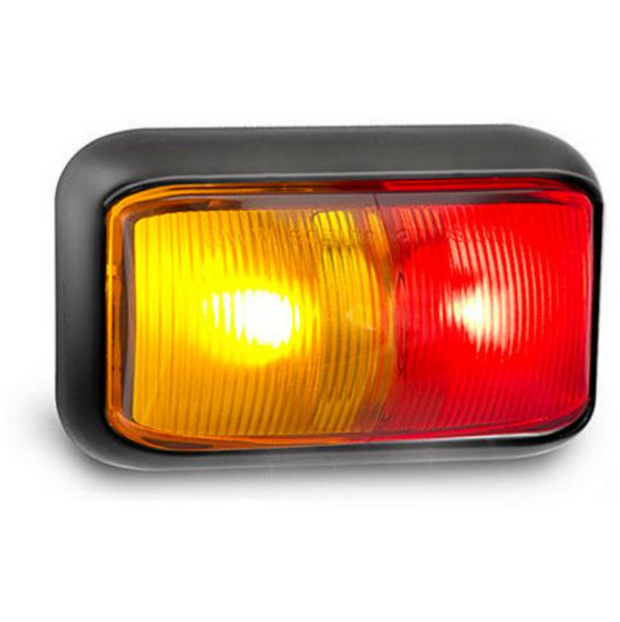

RED & AMBER SIDE MARKER LAMP

Features / Specifications

Budget New Lens Design

Low profile

Clip in replaceable lens

ADR approved

IP67 100% Water proof

Voltage Range 12-24 Volt

5 Year Warranty

58mm x 35mm x 21mm

FEATURES :

• Budget New Lens Design
• Low profile
• Clip in replaceable lens
• Available in Black and Chrome bracket
• ADR approved
• IP67 100% Water proof
• Voltage Range 12-24 Volt
• 5 Year Warranty

OVERALL SIZE :
58 x 35 x 21mm

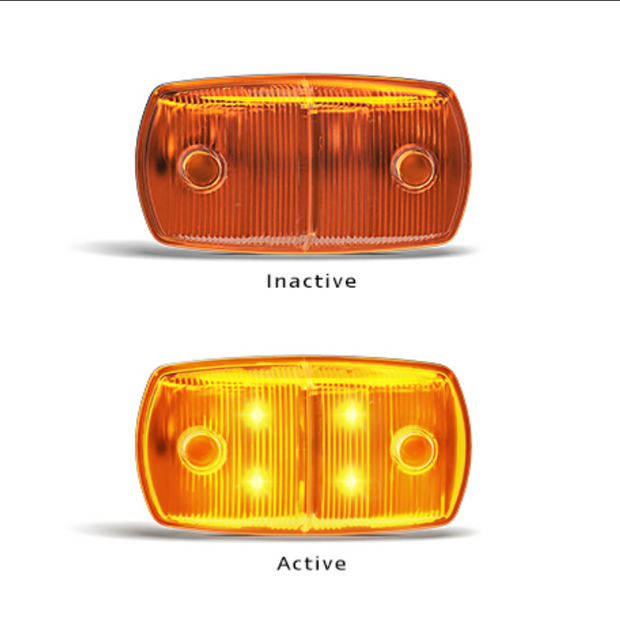

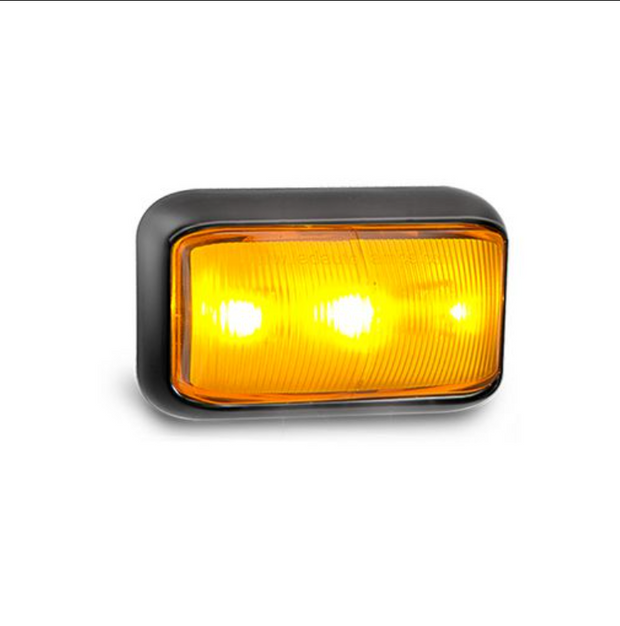

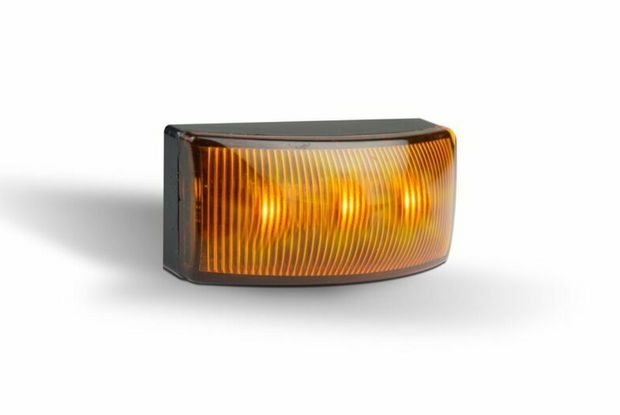

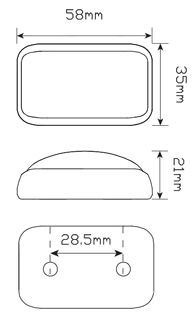

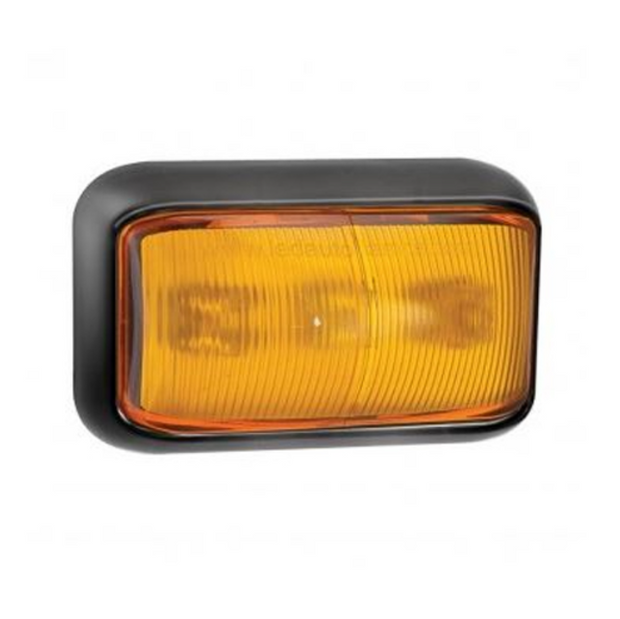

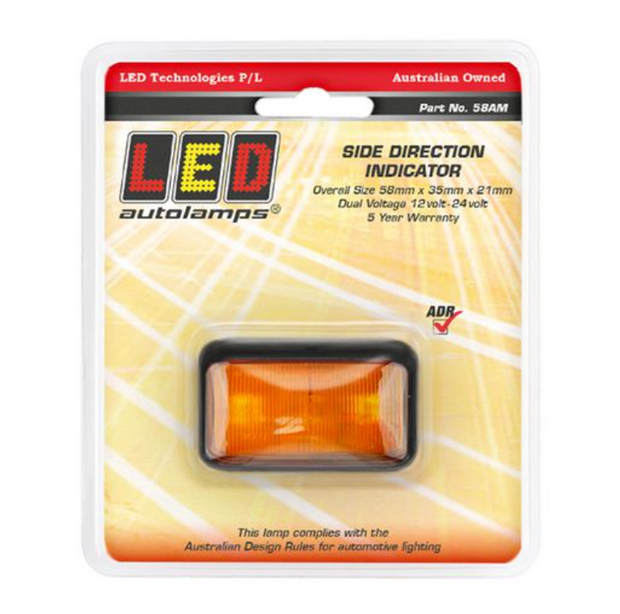

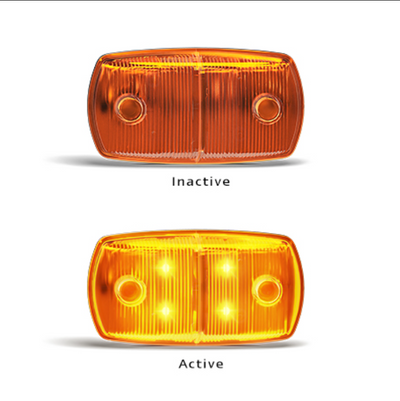

LED Autolamps 58AM Side Direction Indicator Lamp (Blister Single)

Features / Specifications

• Budget New Lens Design
• Low profile
• Clip in replaceable lens
• Available in Black and Chrome bracket
• ADR approved
• IP67 100% Water proof
• Voltage Range 12-24 Volt
• 5 Year Warranty
• 58mm x 35mm x 21mm

Fitting Instructions

Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
