LS Connectors

GM Holden LS1 Map Sensor & LS3 Crank Sensor Connector

 Connector supplied with Pins & Seals

 Also used for:

L76, L77, L98, LS2, LS3, LSA Crank Sensor (58 Tooth)

(If Pre-Wired, wire length is approx. 200mm)

This connector is to suit:

LS1 Cam Sensor

LS1 Crank Sensor (24 Tooth)

L76,L77,L98,LS2,LS3,LSA Cam Sensor

LS1 MAF Sensor

Connector supplied with Pins & Seals

(If Pre-wired, wire length is approx. 200mm)

4 Pin GM LS1 Ignition Coil & 02 Sensor Connector

Connector supplied with Pins & Seals

(If pre-wired, wire length is approx 200mm)

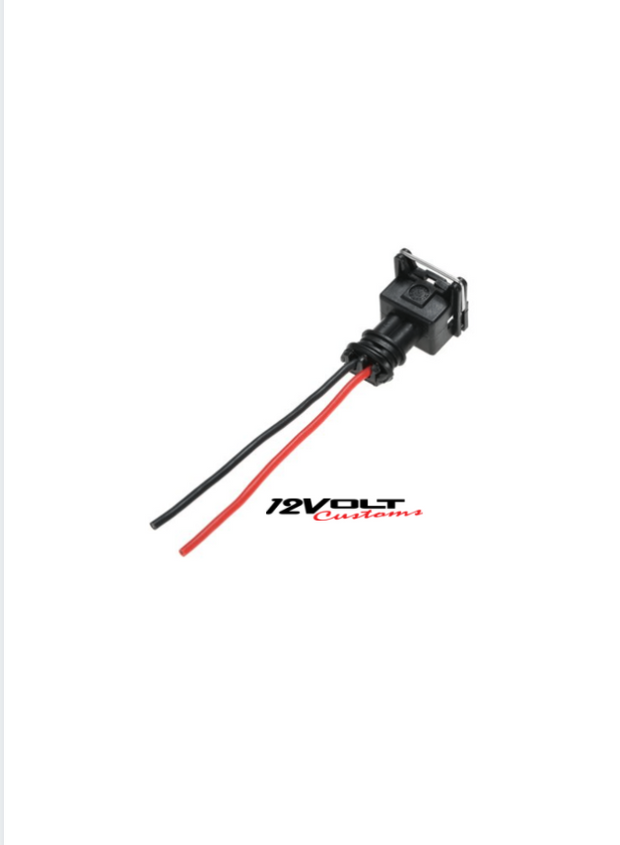

EV1 Injector Connector on GM LS Engines

Please note: This Connector is pull to seat

 Connector supplied with Pins & Seals

 Also used for:

- Holden Injectors

- LS1 Injectors

- Holden Coolant Temp

- Bosch Knock Sensor

(If Pre-Wired, wire length is approx. 200mm)

Stepper Motor [ IAC ] Connector used on GM LS Engines

Connector supplied with Pins

- Suits Aftermarket Stepper Motors

NOTE:

Our Stepper Motor [ IAC] Connector is a "Pull to Seat" Connector

Please follow the below instructions:

• Push the wires in through the connector from the back of the connector
• Strip the insulation off of the wires
• Crimp the terminals on
• Then pull the wires back until the terminals seat into the connector

You are not able to push the terminals through from the back of the connector.

Intake Air Temp Sensor Connector on GM LS Engines

Connector supplied with Pins

NOTE:

Our Intake Air Temp Sensor Connector is a "Pull to Seat" Connector

Please follow the below instructions:

• Push the wires in through the connector from the back of the connector
• Strip the insulation off of the wires
• Crimp the terminals on
• Then pull the wires back until the terminals seat into the connector

You are not able to push the terminals through from the back of the connector.

GM Holden 2 Pin Coolant Temp Sensor Connectorused on GM LS Engines

Connector supplied with Pins & Seals

Also used for:
- VSS [Vehicle Speed Sensor] For T56 Transmission

NOTE:

Our GM Holden 2 Pin Coolant Temp Sensor Connectoris a "Pull to Seat" Connector

Please follow the below instructions:

• Push the wires in through the connector from the back of the connector
• Strip the insulation off of the wires
• Crimp the terminals on
• Then pull the wires back until the terminals seat into the connector

You are not able to push the terminals through from the back of the connector.

Connector used for:

• Mitsubishi and Hitachi Alternator Connector
• LS1 Alternator Connector
• Ford EF/EL 4.0L Alternator Connector
• Ford AU/BA 4.0L Alternator Connector

Connector supplied with Pins & Seals

(If Pre-Wired, wire length is approx. 200mm)
