SAAS Transmission Oil Temp Gauge

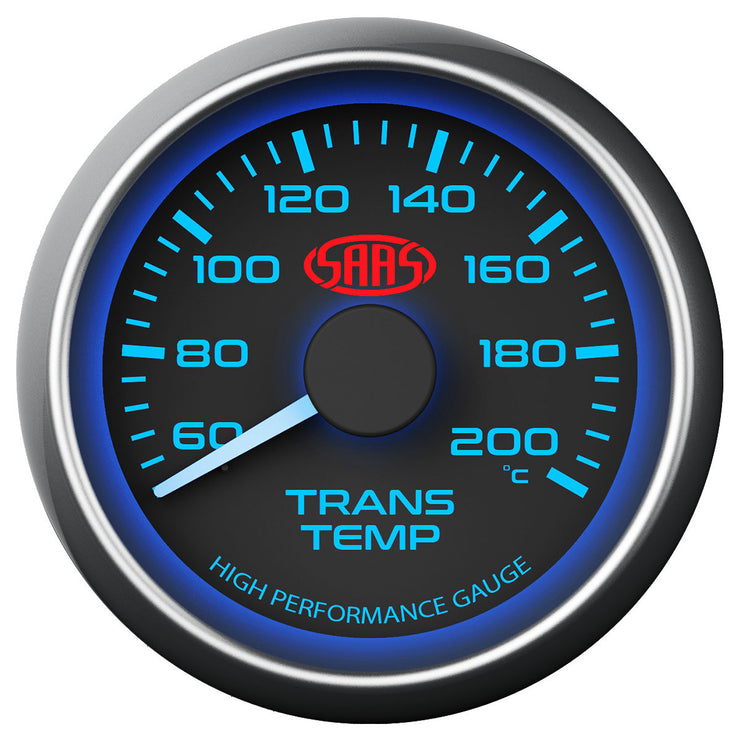

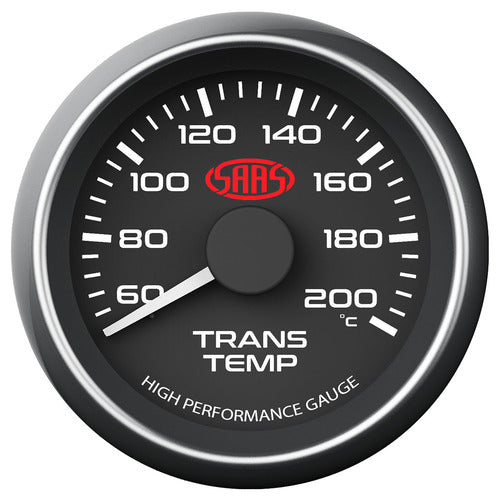

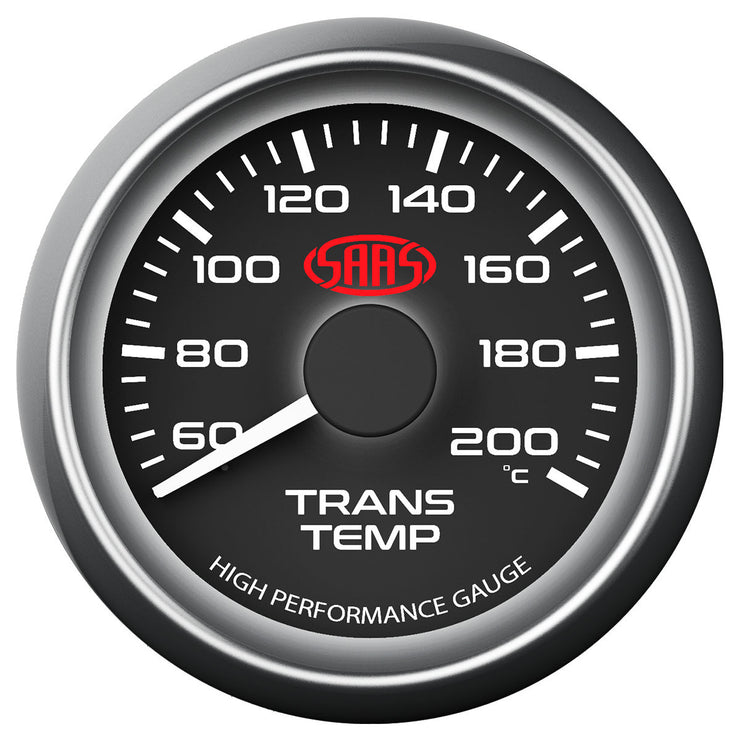

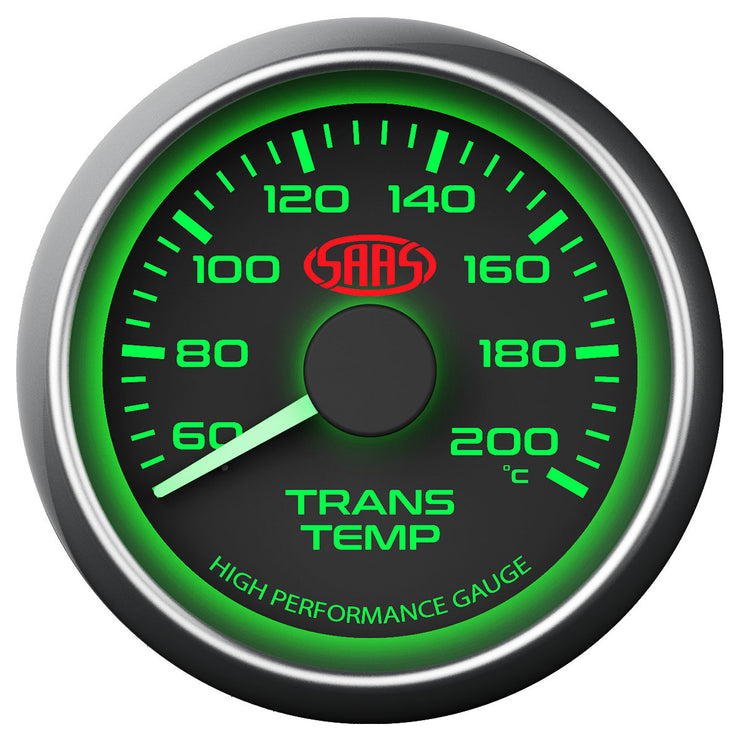

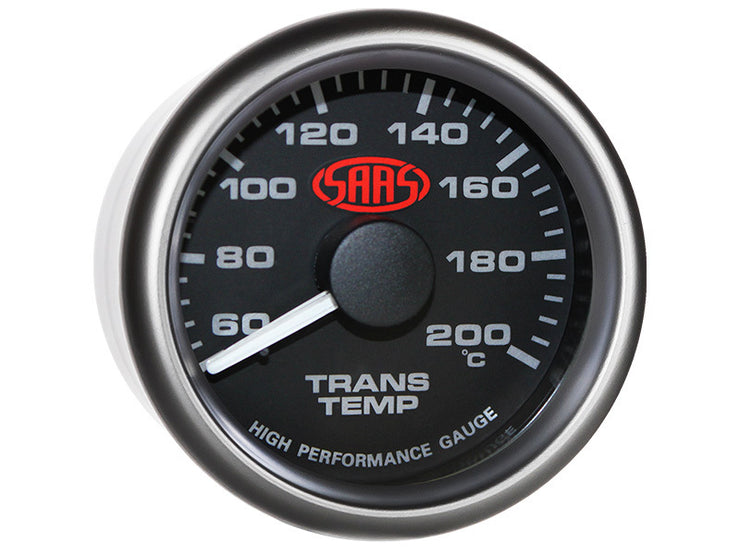

SG-TT52B Trans Oil Temperature Gauge 60°-200° 52mm Black Muscle Series

Keep an eye on your vehicle's automatic transmission oil temperature and be on the alert for possible overheating or other potential transmission issues. Ideal for towing applications where the additional load can produce higher transmission oil temperatures.

FEATURES:

  • 60°-200° Temperature Range
  • LED lighting with 4 colour options
  • Micro switch for backlight changes
  • Replacement spares available (see below)

WHAT'S INCLUDED :

  • Trans Oil Temp Gauge
  • Trans Oil Temperature Sender
  • SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
  • Wiring Loom
  • Mounting Bracket and fittings

FITMENT NOTES:

The sender is most commonly mounted into the transmission oil pan using an in-sump adaptor. Alternatively mount into the HOT trans pipe using an inline T-Piece adaptor.

Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

SPARES/SPECS


SERIES Muscle Series I
DIAMETER 52mm / 2"
RANGE 60°-200°
LIGHTING LED Multi-select 4 Colour
TYPE Electronic
BRACKET MOUNTING SG31005
SENDER TRANS TEMP SG31009
SENDER TRANS TEMP BUNG SGA1007
SENDER THREAD 1/8" NPT
SENDER ADAPTORS Brass Adaptors
WIRING LOOM SG3121
DOWNLOAD Fitting Instructions
