SAAS Oil Temperature Gauge

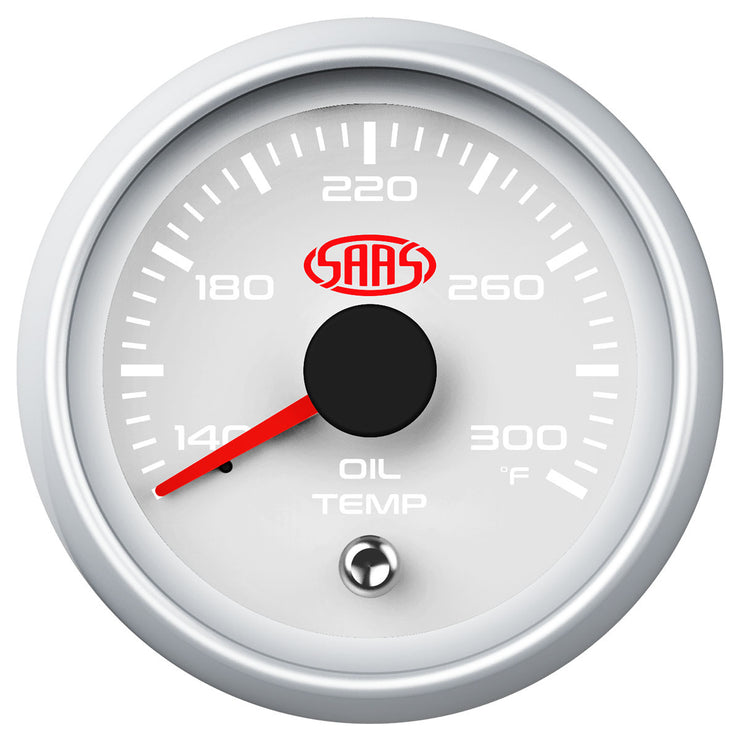

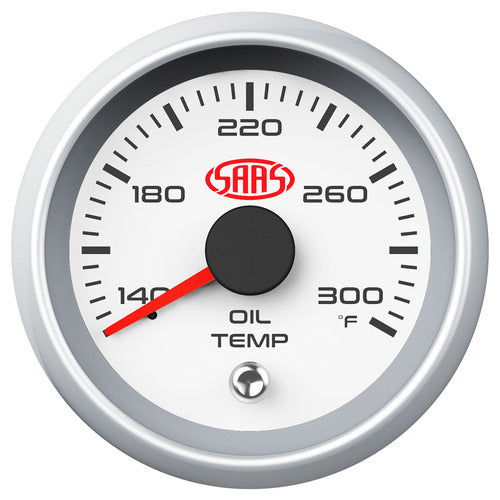

SGOT52WS2 SAAS Oil Temperature Gauge 52mm - White
Keep an eye on your vehicle's engine oil temperature and be on the alert for possible overheating or other potential engine issues.
- 140° F - 300° F Temperature Range

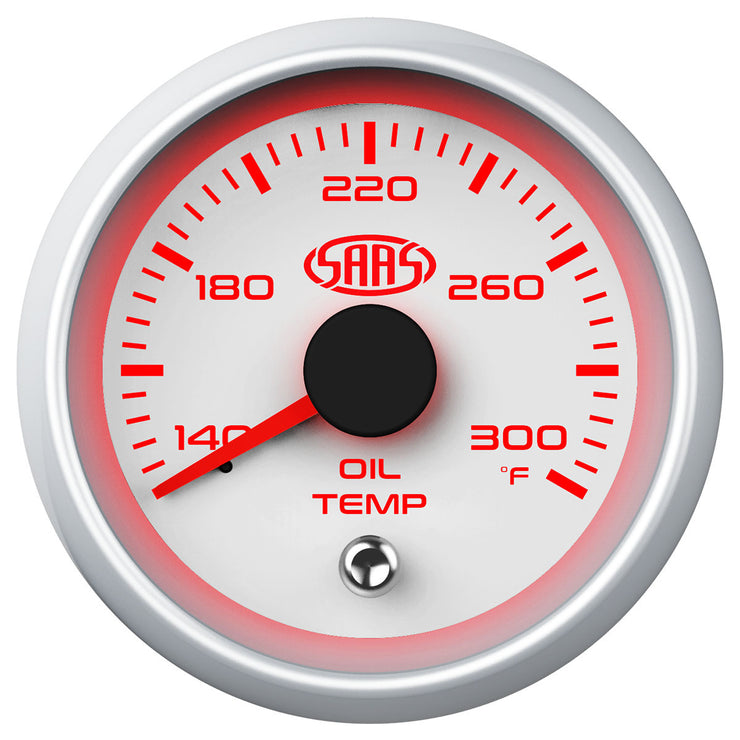

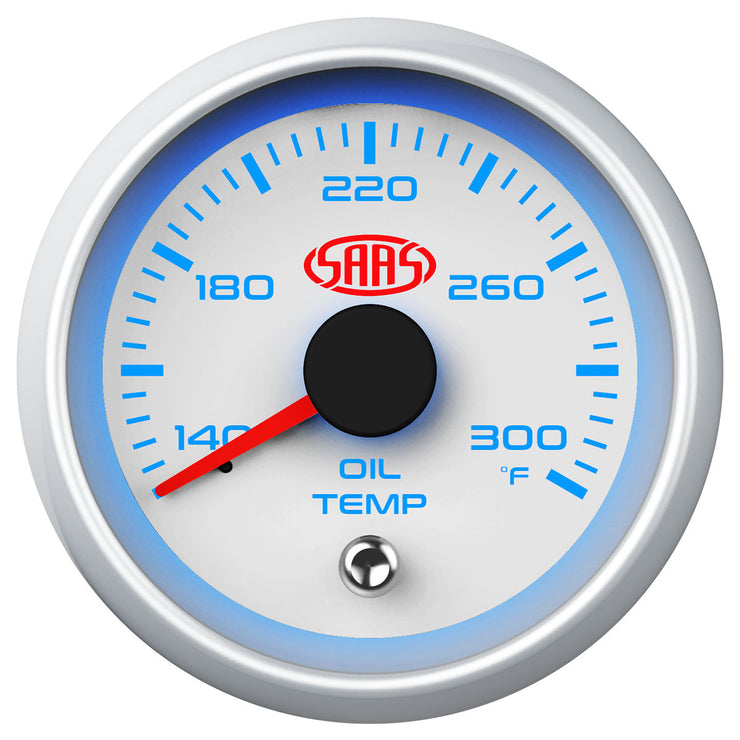

- LED lighting with 4 colour options
- Micro switch for backlight changes
- Replacement spares available (see below)
WHAT'S INCLUDED :
- Oil Temp Gauge
- Oil Temperature Sender
- SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
- Wiring Loom
- Mounting Bracket and fittings
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. If that's already being used for an oil pressure gauge, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.
Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
