Acoustic Liner Stage 2

Regular price $99.00 Save $-99.00
/

Only 10 items in stock!
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2
Acoustic Liner Stage 2

Car Builders Acoustic Liner is a multi-layer open and closed cell foam with a peel and stick backing. It offers a high level of acoustic and thermal insulation superior to that of traditional jute underlay.

Our premium underlay is todays answer to predated jute and cotton mill scrap traditionally used under carpets.

Our Acoustic Liner will not rot, attract mold, is easy to cut and does not require the application of glue.

Our Acoustic Liner can also be used throughout your vehicle as a general purpose thermo acoustic barrier.

Features/Advantages

  • Light Weight
  • Easy installation - just peel off the release liner and adhere to surface.
  • Cuts with scissor and knife
  • Reduces heat transfer
  • Does not rot or deteriorate

Applications

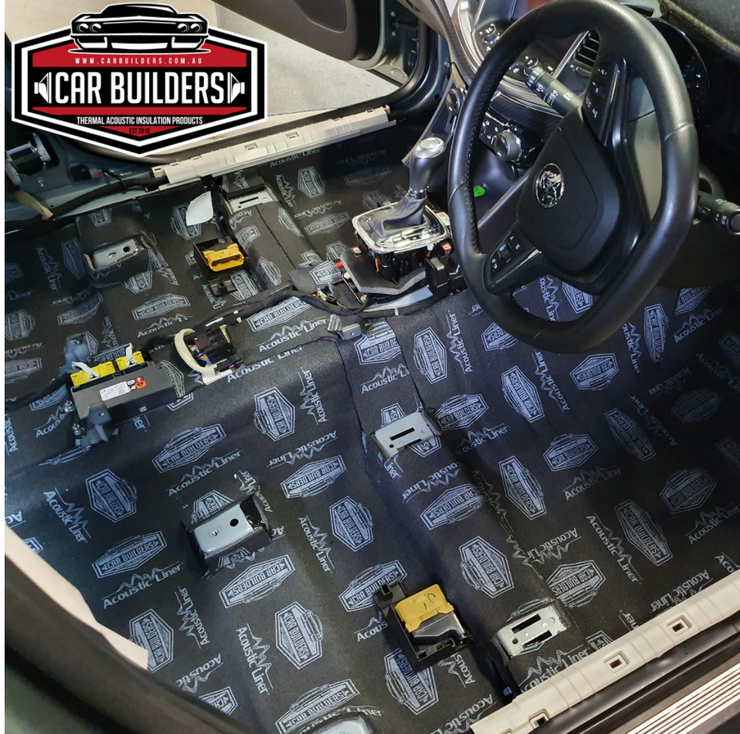

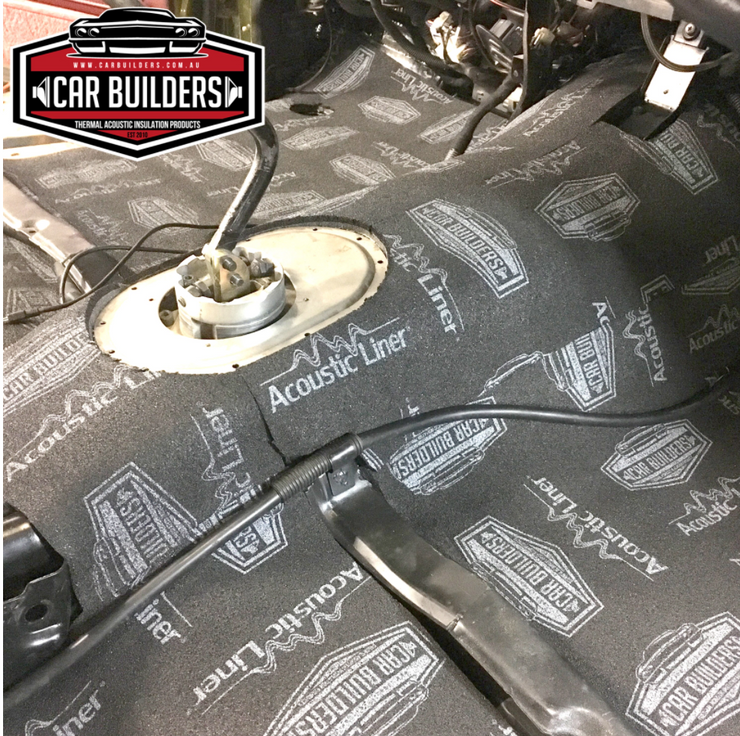

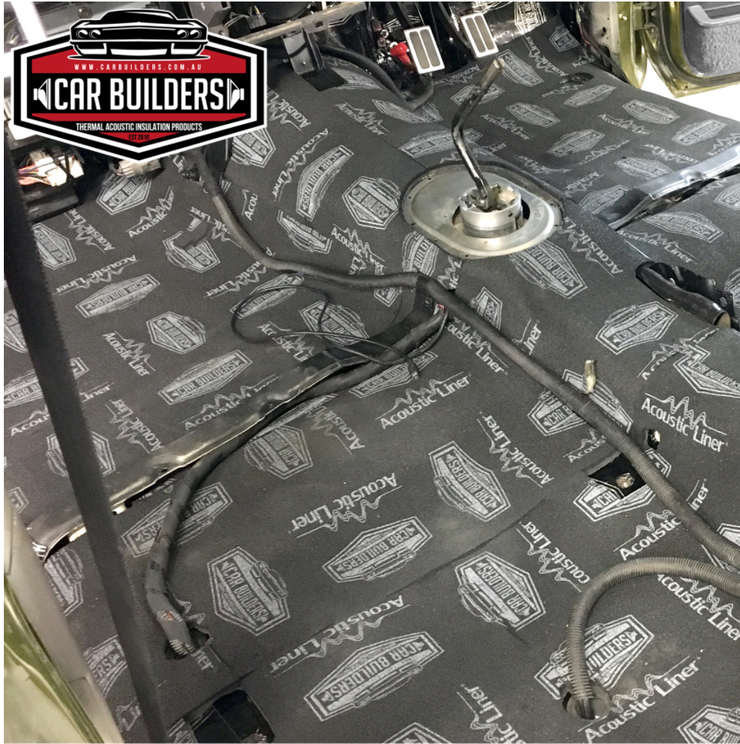

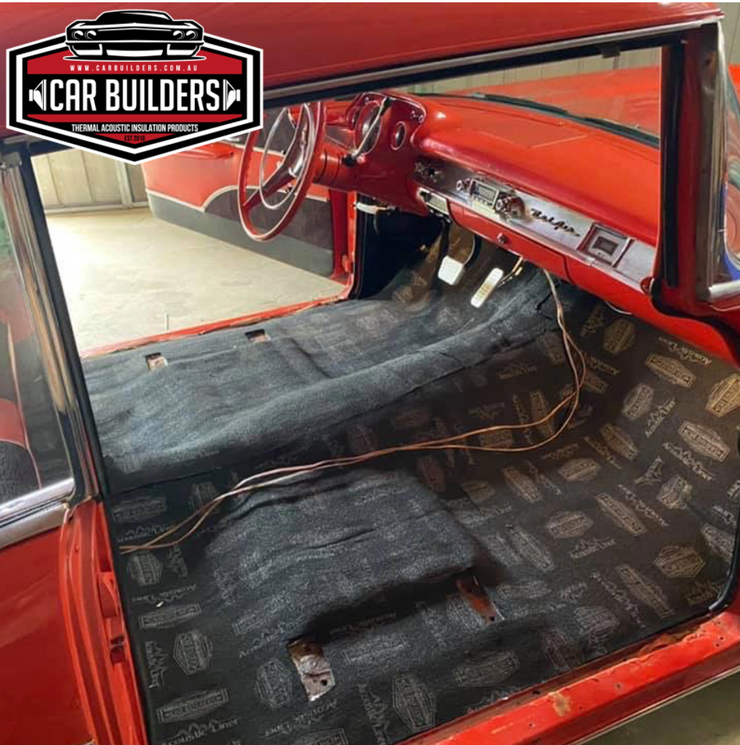

  • Under carpets

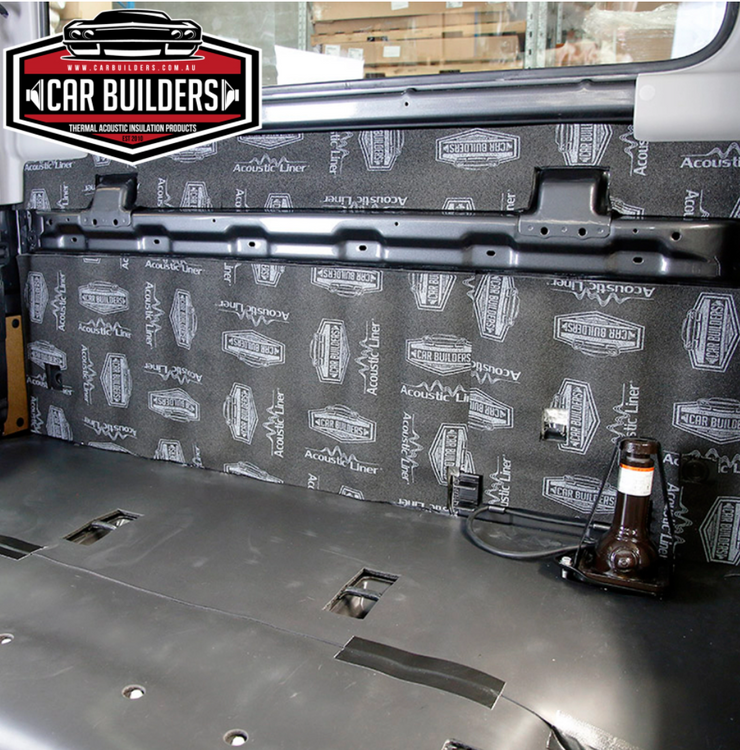

  • Inside cavities
  • 1/4 panels
  • Doors
  • Firewalls

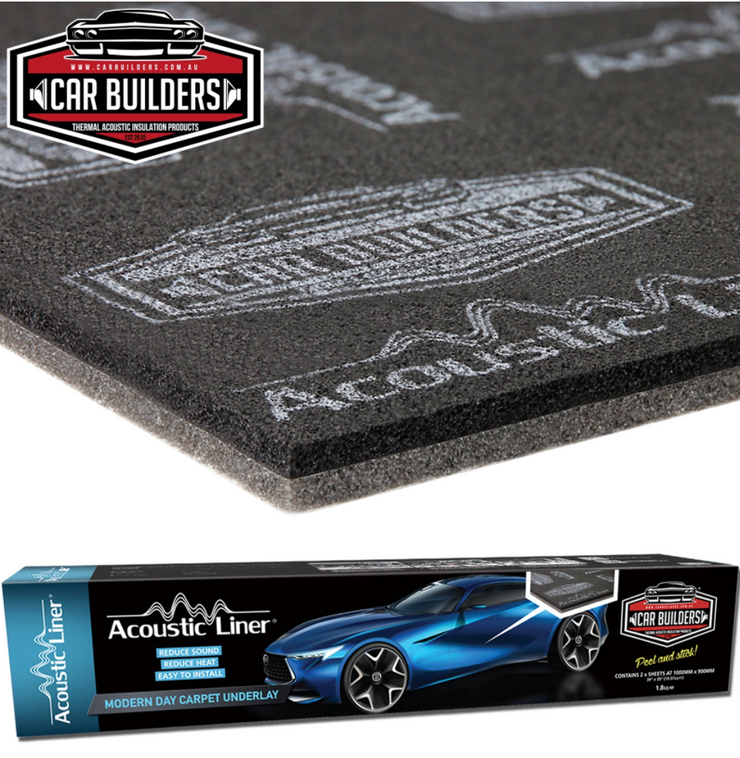

Each box comes with 2 sheets inside, each sheet is 900mm x 1000mm resulting in 1.8sq/m per box.



Acoustic Liner is also effective as a thermal barrier to reduce heat transfer from the exterior of your vehicle.  The material will reduce radiant heat by up to 20°C, and can be the difference between discomfort and pleasure

Sheet dimensions
Length: 1000mm
Width: 900mm
Thickness: 12mm
Total Weight: 1kg
Weight/Sqm: 0.55kg



Material:
6mm open cell foam (lighter grey colour) and 6mm closed cell foam (darker foam on top).



​Material temperature resistance:

Cold Resistance: - 40°C
Heat Resistance: short term + 135°C, long term +110°C



Adhesive temperature resistance:

Cold Resistance: -40°C
Heat Resistance: short term + 150°C, long term +135°C
Flame Retardant: Grade B2
Heat Conductivity Factor: <= 0.034 W/(M.K)    at 0°C
