SG913020 Dual Digital Gauge Oil Press140 Psi/Water Temp 40°-120° Trax
NOW FEATURING DIMMABLE LIGHTING
The new for 2021 SAAS Digital specialty 4WD gauges give you dual digital readings in a now dimmable setting. Monitor your critical Oil Pressure and Water Temperature with these accurate, stylish and easy to read series.
FEATURES:
- Easy to read combination OLED Digital readouts

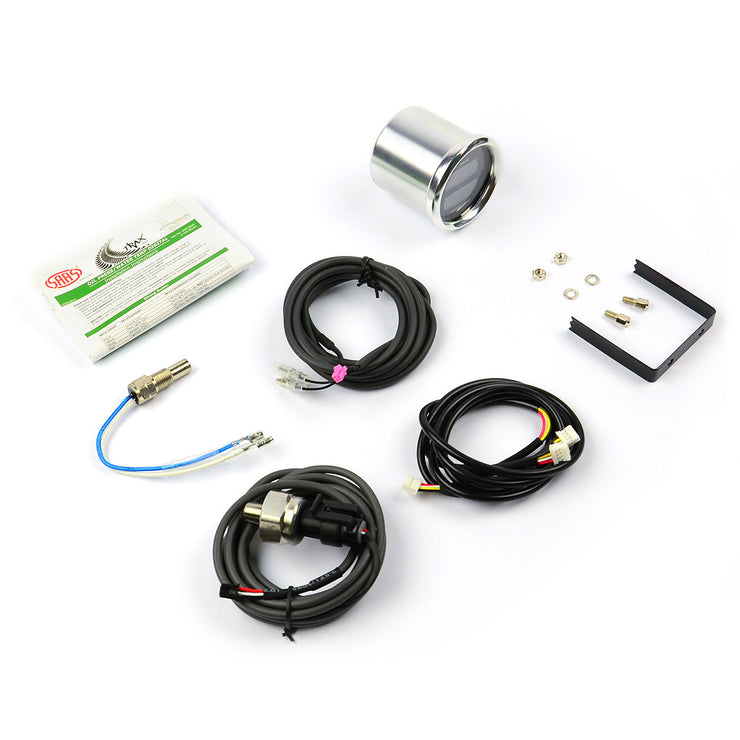

- Includes all mounting hardware, bracket and sender(s)

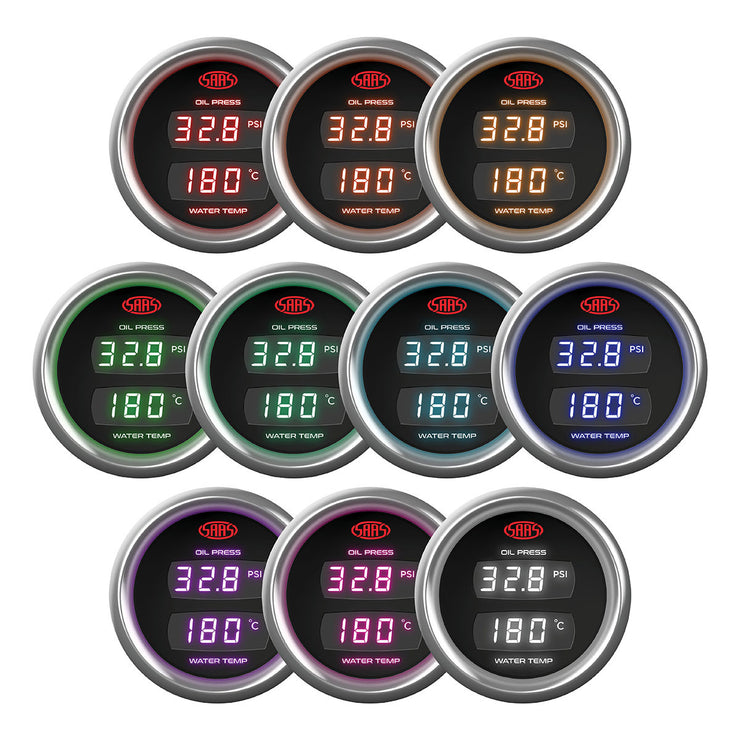

- Choice of 10 different LED backlighting colours
- 5 levels of day / night dimming function
- Measure Oil Pressure 0-140 Psi
- Measure Water Temperature 40°-120°
- User pre-set warning functions on both readouts
- Full range of replacement spare parts, senders, wiring looms available
SPARES/SPECS
| SERIES | Trax Dual Digital |
| DIAMETER | 52mm / 2" |
| RANGE | Oil Pressure 140 Psi / Water Temp 40°-120° Digital |
| LIGHTING | LED Multi-select 10 Colour |
| TYPE | Digital |
| BRACKET MOUNTING | SG61005 |
| GAUGE LINK CONNECTOR | SG9101 |
| SENDER OIL PRESSURE | SG91002 incl loom |
| SENDER WATER TEMP | SG91001 incl loom |
| SENDER THREAD | 1/8" NPT |
| SENDER ADAPTORS | Brass Adaptors |
| WIRING LOOM | SG9100 4 Pin Main |
| WIRING LOOM WATER TEMP | SG9103 2 pin |
| WIRING LOOM BOOST/OIL SENDER | SG9104 3 pin |
| DOWNLOAD | Fitting Instructions |
